The menu item Edit project is divided into several sections:

Save project

Common: Covers all aspects valid on project level

WebOffice: WebOffice 10.9 SP1-specific configuration

Maps: All configurations that are relevant for the maps

External: External services like Geolocators, Network analysis or WFS-services

Core: core client specific configurations (Ribbons, Quick tools, Time awareness)

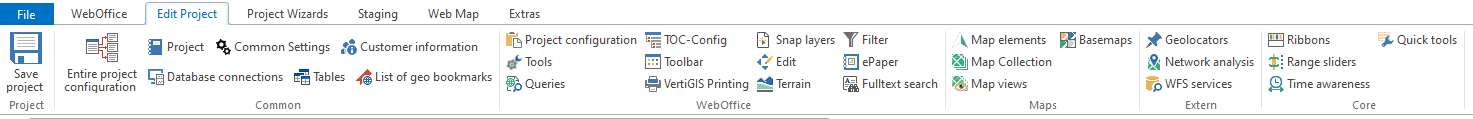

woas_edit2

Edit Project menu bar



Icon

Menu item

Description

woas_edit

Save project

Here you can save changes that were made with WebOffice author standalone can be saved.

was_project_structure1

Entire Project Configuration

Shows the entire configuration of your project.

wa_edit_menu2

Project

Used for configuring properties of the WebOffice 10.9 SP1 project itself like e.g. the name displayed in the WebOffice 10.9 SP1 clients.

Using user name and password, a simple access restriction can be configured.

wa_edit_menu3

Common Settings

In the common settings important properties like the e-mail of the system administrator can be configured.

wa_edit_menu4

Customer Information

Using customer information names, logos and URL's displayed in the WebOffice 10.9 SP1 clients can be configured. This is used to quickly implement some aspects of corporate identity/corporate design guide.

wa_edit_menu5

Database Connections

If you need direct access to relational database tables (e.g. for querying tables, for relating layers with tables via join (1:1) or relate (1:N) relation or for using lookup tables) then you can configure JDBC database connections here.

icon_comment

Configuring a database connection does not mean installing the JDBC database driver. This must be done separately by the system administrator on the WebOffice 10.9 SP1 application server.

wa_edit_menu6

Tables

Used for configuring relational tables you want to use in your WebOffice 10.9 SP1 project (e.g. for querying tables, for relating layers with tables via join (1:1) or relate (1:N) relation or for using lookup tables).

wa_edit_menu7

List of geo bookmarks

Geo-bookmarks enable administrators to specify a set of geographical extents and name them. Geo-bookmarks can be created in ArcMap and used for WebOffice 10.9 SP1 or be created directly in WebOffice author.

wa_edit_menu8

Project Configuration

Here you can set the most important aspects of a WebOffice 10.9 SP1 project such as certain default values, display configurations, etc. can be set.

wa_edit_menu9

Tools

Here you can configure which tools will be available in the WebOffice 10.9 SP1 clients and for each tool you can specify certain details or required base information.

wa_edit_menu10

Layer Queries

Here you can configure all layer specific properties related to query, selection, result display etc. This configuration menu item is probably the most frequently used.

wa_edit_menu11

Table of Contents (TOC)

Used for configuration the table of content for controlling the map collection of this WebOffice 10.9 SP1 project.

wa_edit_menu12

Toolbar

Define if tools are prioritized or not, meaning whether they should be placed in the toolbar at prominent position or located under More tools...

wa_edit_menu13

VertiGIS Printing

Entry point for configuring print templates, output formats etc. for VertiGIS Printing.

wa_edit_menu14

Snap Layer

Use this for configuring snap layers to use for exact measuring and exact usage of selection tools.

wa_edit_menu15

Editing

Configure edit layers to provide editing functionality for your WebOffice 10.9 SP1 project. Define which layers, fields are editable and which edit actions are to be available.

wa_edit_menu16

Height Info Raster Layers

Used for configuration of raster layers containing elevation data: elevation, slope and aspect.

wa_edit_menu17

Filters

Entry point to create filter condition for your WebOffice 10.9 SP1 project.

wa_edit_menu18

ePaper

Entry point for configuring WebOffice ePaper templates and template specific function fields.

wa_edit_menu19

Full Text Search

Define here all project specific settings regarding the full-text search. Where should the full-text search be located in the WebOffice 10.9 SP1 project, maximum suggestions, etc.

wa_edit_menu20

Map Elements

Here you can configure all the necessary map elements: Used for configuring all map elements like map services in the Map Collection, ArcGIS Server Geometry Service, Overview map service, ArcGIS Server Output Service and graphic elements that get displayed on top of the map like North arrow, Scale bar, Copyright etc.

wa_edit_menu21

Map Collection

Used for configuring map services included in the Map collection and properties of the Map collection itself.

wa_edit_menu22

Map Views

Use this for configuring map views (Representation models).

wa_edit_menu26

Basemaps

Basemaps can be selected and managed under this item.

wa_edit_menu23

Geolocators

Geolocators provide a simple one line address search comparable to Google or Microsoft Bing address searches.

wa_edit_menu24

Network Analysis

Here, network analyses can be included in the form of ArcGIS Server network analysis services. This allows, for example, the catchment area of a site, the optimal route through a city, and the like to be displayed in WebOffice 10.9 SP1 can be made possible.

wa_edit_menu25

WFS services

The OGC Web Feature Services configured in WFS Search appear here.

wa_edit_menu27

Ribbons

Ribbons can be used to configure tools of your WebOffice 10.9 SP1 project for the WebOffice core client in a user-defined arrangement or grouping.

wa_edit_menu28

Quick Tools

Quick access functionality can be configured using Javascript files. WebOffice 10.9 SP1 already provides three scripts.

wa_edit_menu29

Time Awareness

With WebOffice 10.9 SP1 it is possible to visualize transformations using a time slider. Through this slider it is possible to select different dates or periods and the time-related content will be shown accordingly in the map image.

Menu item Edit Project



icon_comment

Ribbons, Quick tools and time awareness are only available in WebOffice core client.
