Introduction to WebOffice flex Client > Queries

WebOffice flex client also supports the raster choice function which offers the possibility of using ESRI raster catalogues to show one or multiple arbitrary raster images in the map. This includes both raster choice and raster choice with territorial validity FC with the latter displaying the validity of the raster plan by means of a polygon feature class that contains a polygon for each raster plan.

Note: For detailed information about the configuration in WebOffice 10 R3, please see chapters Raster Choice and Raster Choice with territorial Validity FC.

Raster choice - directly search for raster images and show them with a click on the button in the information form

Raster Choice with territorial validity FC in WebOffice flex client - polygon linked to a raster plan

When using the raster chocie with territorial validity FC and a polygon has no raster plan linked to it, WebOffice flex client will send a message as shown in the figure below.

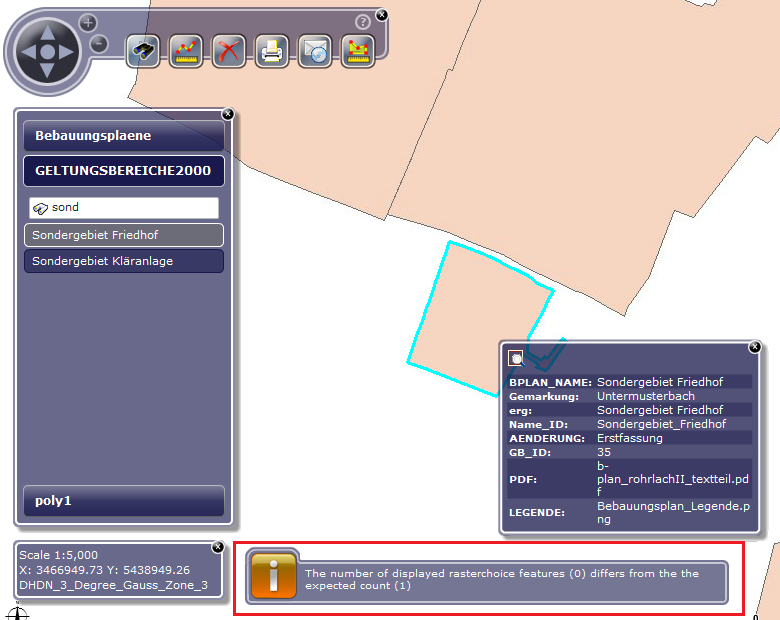

Raster choice with territorial validity FC - no raster plan available for the selected polygon
