Navigation:  Introduction to WebOffice flex Client > Results

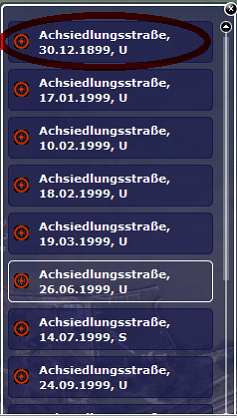

WebOffice flex client shows a list of found objects if the search criteria is not unique:

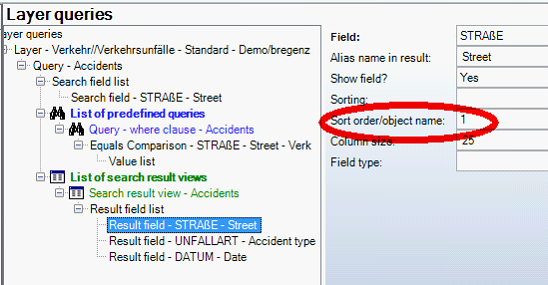

You can exactly specify the attributes and the order of attributes displayed for each of the objects in the list of found objects by using the Sort order/object name attribute of the Result field configuration element.

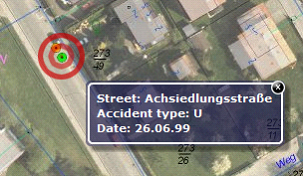

For single and unique search hits, WebOffice flex client automatically centers the map for displaying the found object. The object details get displayed aside the marked object in the map using a semitransparent details result window.

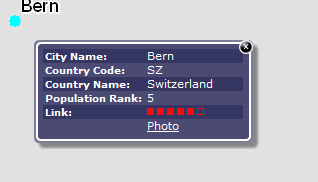

Applications/hyperlinks are sometimes linked and configured on multiple fields. That, for instance, only one field label can be set in the search results of the appearing Link list, but several fields with a particular thematic heading/caption can be assigned to that Link list in WebOffice 10 R3. The Link header for the Link list will be displayed only once ("Link:" to the left) as the very first heading for several links assigned and listed.

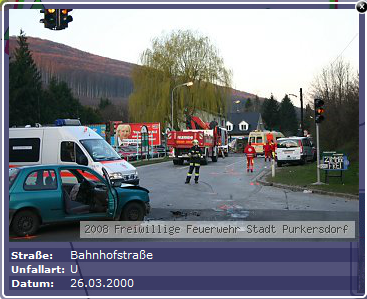

WebOffice 10 R3 allows the user to also configure images in the MapTip-query results through the integration of external applications. These images can be displayed either next to or above the field name. The images are also resolved automatically in MapTip by default. They can, however, also be configured in a way that the image is not resolved immediately, but is opened via a link. If the image is opened via a link, it can also be opened up in a pop-up window. The size of the pop-up window showing external applications is configurable (more information available in Integration of external Applications).
