For WebOffice flex specific configuration attributes are available in WebOffice author.
It's possible to configure specific icons as well as different gradient and text colors for each query (Option 1) or to make a general configuration that is valid for every query (Option 2). In case you wish to have the same settings for all queries except of one, then make the general settings first and afterward configure the settings for the specific query.
Option 1: configuring different attributes for each query
WebOffice 10 R3 flex specific Query attributes
Property |
Description |
Image for search icon |
URL of the image used as search icon.
File extension (e.g. .gif or .jpg) must be included. Image file must have size 24x24 pixels.  WebOffice 10 R3 flex - configured search with search icon |
First gradient color |
First color of the gradient filling the background of the search header in the WebOffice 10 R3 Flex accordion.  WebOffice 10 R3 flex – inactive configured search - first color of the gradient
 WebOffice 10 R3 flex – active configured search - first color of the gradient
Note: The following color values are recommended for the skin 'navajowhite3': •80,80,80 •144,140,137 |
Second gradient color |
Second color of the gradient filling the background of the search header in the WebOffice 10 R3 Flex accordion.  WebOffice 10 R3 flex – inactive configured search - second color of the gradient
Note: The following color values are recommended for the skin 'navajowhite3': •80,80,80 •144,140,137 |
Text color |
Text color of the header in the WebOffice 10 R3 Flex search accordion. |
Text hover color |
Text color of the header in the WebOffice Flex search accordion, when hovering over the header |

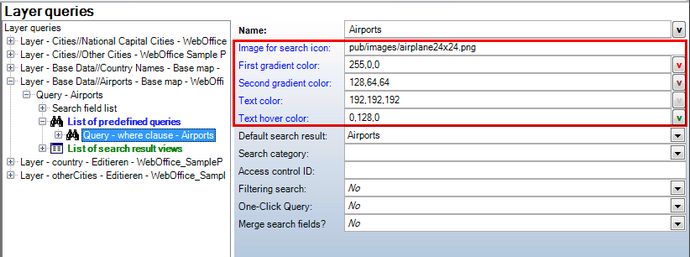

WebOffice 10 R3 flex specific Query attributes 'Search form type' and 'Image for search icon'
Option 2: general settings which are valid for all layer queries
WebOffice 10 R3 flex specific query attributes - Settings color gradient
Property |
Description |
Search headers - First gradient color |
First color of the gradient filling the background of all search headers in the WebOffice Flex accordion. |
Search headers - Second gradient color |
Second color of the gradient filling the background of all search headers in the WebOffice Flex accordion. |
Search headers - Text color |
Text color of all search headers in the WebOffice Flex search accordion. |
Search headers - Hover color |
Text color of all search headers in the WebOffice Flex search accordion, when hovering over the header. |

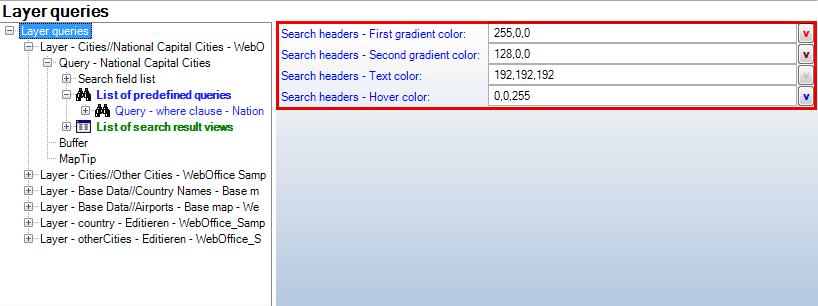

WebOffice 10 R3 flex specific query attributes - Configuration color gradient
With WebOffice 10 R3 it is possible to display more than five predefined queries (predefined query display will change from accordion view to value list view automatically if using compact search form). It is also possible to display the predefined queries in a drop down box. Choose No for the option Use compact search form in Common Settings.

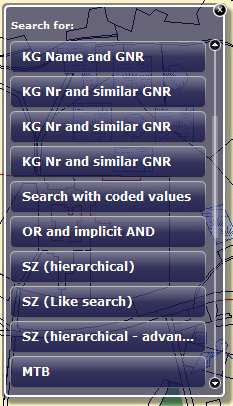

Compact search form WebOffice 10 R3 flex

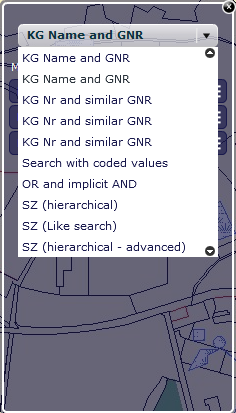

Expanded search form in WebOffice 10 R3 flex

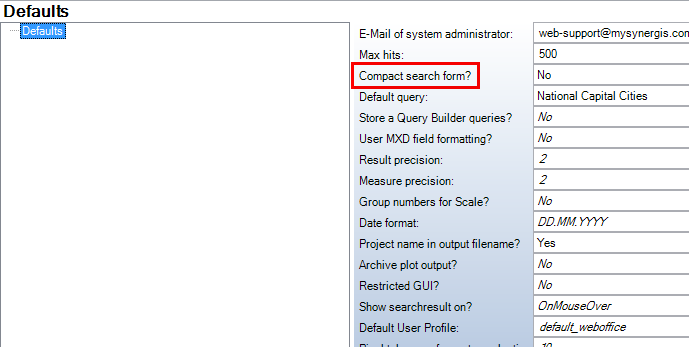

Search form type setting - Common Settings
