This feature is an enhanced version of the Raster Choice feature (see chapter Raster Choice for details). The enhancement is the possibility to exactly display the validity of the raster plan by means of a polygon feature class which contains a polygon for each raster plan.

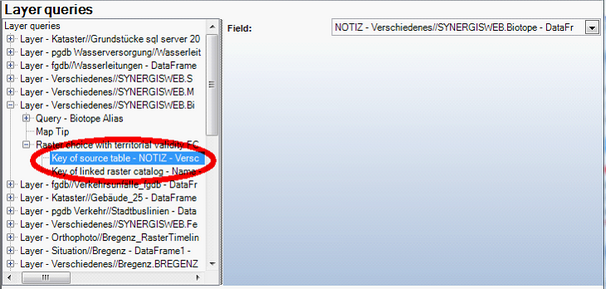

Raster choice with territorial validity FC
The Raster Choice with territorial validity FC elements gets configured on the Layer configuration of the polygon feature class representing the outlines of each of the raster images.
Property |
Description |
Key of source table |
Key of the source table (business table of polygon FC) containing the unique name/ID of the raster image. |
Key of linked raster catalog |
Key field of the linked raster catalog containing the unique name/ID of the raster image. |
Raster catalog with polygon validity FC
Note that for being able to configure the Key field of the linked raster catalog, a search result configuration containing this field must be created on the raster catalog layer.

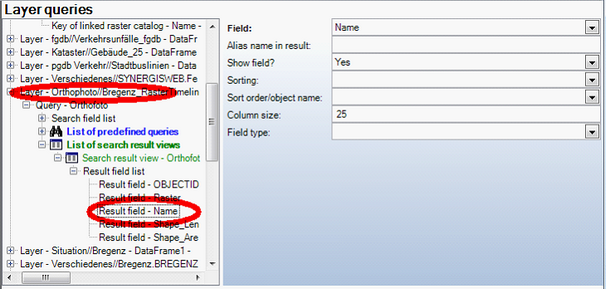

Key of linked raster catalog configured in search result view
