Layer Queries

Property

Description

Layer ID

Layer ID used to reference the WebOffice Layer configuration to the map layer.

Note: The Layer ID is built using

the name of the top level layer group (ArcMap table of content) plus

the name of the layer (ArcMap table of content).

E.g. For top level layer group ‘Base Data’ and Layer ‘Airports’ the Layer ID is: ‘Base Data//Airports’

Example for how the Layer ID is built.

Layer name (queries)

Layer name which is displayed in

•Query form for grouping all Predefined Queries on this Layer and

•Is displayed in Tool forms as Layer name

in the WebOffice client.

Layer name 'My Airports' example

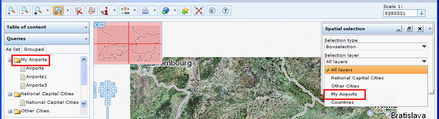

Layer name 'My Airports' example - WebOffice client

Note: If ‘Layer name’ is not set (empty value) then by default the ArcMap layer name is used.

Search possible?

Specifies if the user is able to search on the Layer (using attributive search criteria). If the Layer is configured for search then

•The List of Search Fields as well as

•One or more Predefined Queries

must be configured.

One or more Search Results may be configured for each Layer.

Map refresh with result display?

Specifies whether executing a query will display all results in the largest possible scale ("map and zoom"), will keep the current scale if possible ("map and pan") or will display the query result without map refresh ("no map update").

Identify/Select?

Specifies if Identify respectively Spatial search (Selection Tools etc.) is possible on the Layer. If Yes, a Search result should be configured for this Layer.

Layer category

Group category for layer lists displayed for the following tools: identify, select, free labeling, buffer, MapTip and editing. Layer categories are defined in the list of layer categories

Show null values?

Show null values in result display (y/n)

Search result for Info/Identify

Specifies the default Search result used for displaying the result of Identify/Select operations.

Reference scale

Scale to be used for displaying search results (especially single objects) in the map. If "0" is set, the value defined on project level (Display, see chapter Display) is used.

Map view for search result

Specifies a specific map view/representation model to be displayed when displaying the search result. If not configured the search result gets displayed using the current map view, i.e. the current map display is not changed at all.

Dynamic selection display?

Specifies if map selection display gets rendered using dynamic animated selection symbols.

Note: Dynamic selection display only works if a Dynamic Selection is configured on project level.

Show only with result display?

Specifies if the layer is only shown as result of a query.

Note: Using this property only has effect on the visibility of the affected layer, not on the visibility of a group or a map service. Furthermore a specified Map view for search result will be ignored.

Use route functionality?

Specifies if the linear referencing functionality should be used on this layer. This is possible only if the data is a route created with Esri Linear Referencing module. For details on how to configure a search using measures, see chapter How to search for route segments.
