Dynamic Selection |

|
Dynamic Selection |
|
Using the dynamic selection configuration element, object selections can be displayed using animated graphics like animated gif files. Displaying dynamic selection symbols enables the user to immediately know where to find the objects searched for because the objects are marked by animated graphic images.

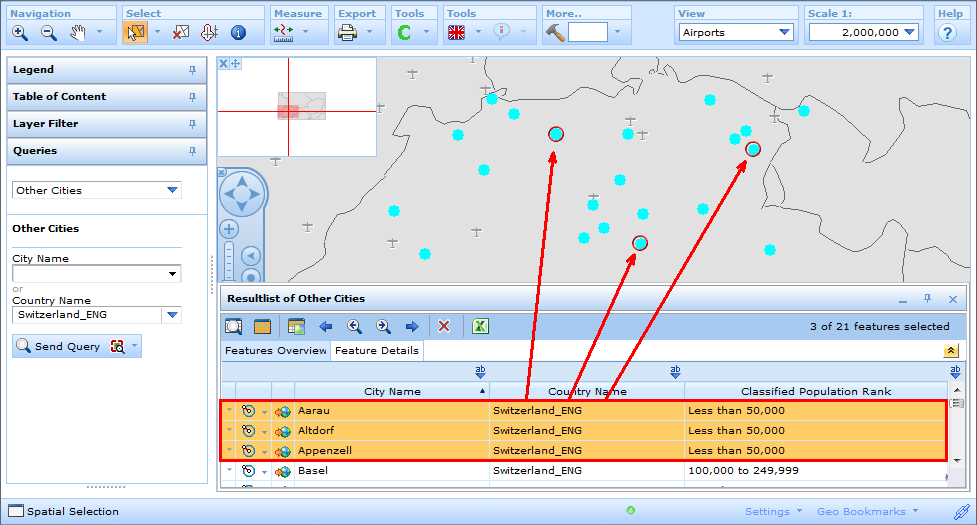

Dynamic selection in WebOffice html client
Behavior of dynamic selection is configured using the dynamic selection configuration element on project configuration level (i.e. the way dynamic selections get displayed is the same for all layers in the WebOffice 10 R3 project configuration).

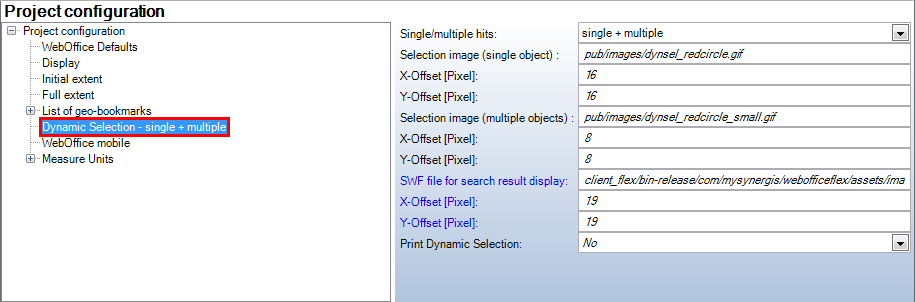

Dynamic selection configuration
Property |
Description |
Single/multiple hits |
Specifies if the dynamic selection will be used for •Single objects only ('single') •Single and multiple objects ('single + multiple'). |
Selection image (single object) |
URL referencing the image file used for dynamic selection display (Default is pub/images/dynsel_redcircle.gif). |
X-Offset [Pixel] |
X-Offset [Pixel] for insert point of the graphic symbol. |
Y-Offset [Pixel] |
Y-Offset [Pixel] for insert point of the graphic symbol. |
Selection image (multiple objects) |
URL referencing the image file used for dynamic selection display (Default is pub/images/dynsel_redcircle_small.gif). |
X-Offset [Pixel] |
X-Offset [Pixel] for insert point of the graphic symbol. |
Y-Offset [Pixel] |
Y-Offset [Pixel] for insert point of the graphic symbol. |
SWF file for search result display |
SWF file for search result display in WebOffice 10 R3 flex Client. |
X-Offset [Pixel] |
X-Offset [Pixel] for insert point of the graphic symbol. |
Y-Offset [Pixel] |
Y-Offset [Pixel] for insert point of the graphic symbol. |
Print Dynamic Selection |
Include dynamic selection images in the print output. Note: For technical reasons the following order in the print output is mandatory: - ArcMap selection (on top) - markup graphics (dynamic selection symbols, measure graphics) - map Note: SynerGIS does not recommend the use of dynamic selection symbols in prints together with large selections because it will substantially increase the necessary time to create a print output. Note: WebOffice 10 R3 does not support the print of *.sfw files. |
Dynamic selection configuration
For each Layer query configuration element, it is possible to control whether dynamic selection should be used or not.

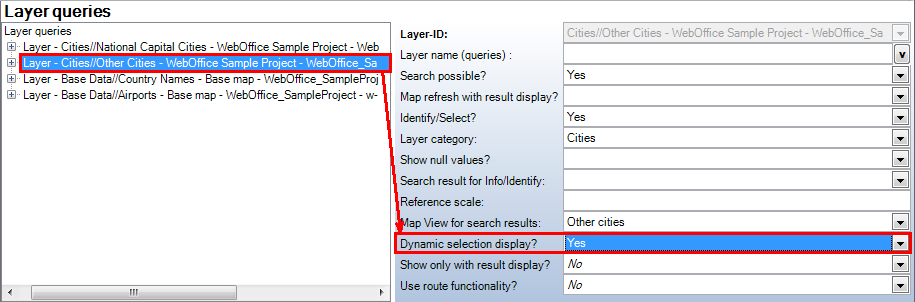

Layer specific configuration attribute for activating dynamic selection display
Note: See chapter MapTip as well.
