Add Images

Previous pageReturn to chapter overviewNext page

Configure the Add Images function as a tool in your WebOffice 10.8 SP2 project to upload images to the WebOffice 10.8 SP2 server, save the EXIF header information into a feature class and display the images according to their position on the map.

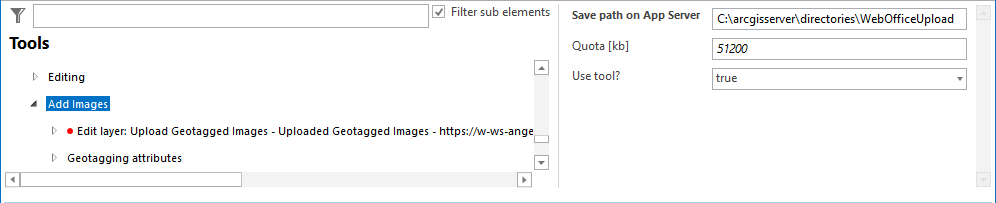

Upload geotagged images tool configuration

Upload geotagged images tool configuration



Property

Description

Save path on App Server

Save path of the uploaded images. Specifies a local server path on WebOffice 10.8 SP2 Server.

Example: C:\arcgisserver\directories\WebOfficeUpload.

Quota [kb]

Size of maximum file upload in KB.

Use tool?

Control whether this tool is available in the WebOffice 10.8 SP2 client (true) or not (false).

Add Images tool properties



In order to make the tool available in the WebOffice 10.8 SP2 client, you need to configure at least

one Edit Layer (specifically for the Add Images tool)

Geotagging Attributes



In the constellation of differently adjusted coordinate systems (main map service - ArcGIS Server Output Service - edit layer Add Images) please consider:

If the subsequent geometric editing (position) of uploaded georeferenced photos has an offset after completing the editing action, a subsequent adjustment is necessary.

In order to use the EXIF information of the uploaded georeferenced photos correctly, the corresponding feature class for the point photo location must be available in WGS84 (Geographic Coordinate System). If the main map service of your WebOffice project is available in WebMercator or WGS84, no transformation needs to be saved to the data frame (the underlying MXD for uploading georeferenced photos).

However, if your main map service has a projected coordinate system, the correct transformation must be stored on the data frame (the underlying MXD for uploading the georeferenced photos).

Example: If your main map service has the EPSG code 31256, a transformation from GCS_WGS_1984 (EPSG: 4326) to EPSG: 31256 must be saved in the data frame.

This ensures that the position is taken over correctly when the geometrical position of the photos is subsequently edited.

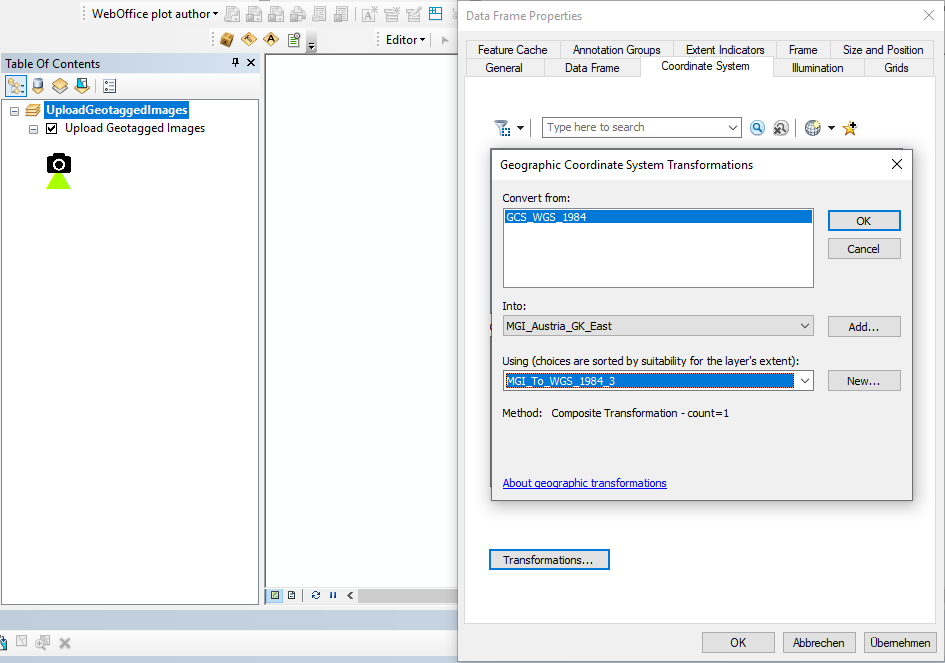

Example for the configuration of a transformation on the "UploadGeotaggedImages" layer

Example for the configuration of a transformation on the "UploadGeotaggedImages" layer





Retrieve uploaded images

In order to retrieve images in the WebOffice 10.8 SP2 application or in other systems there has to exist a virtual directory which points to the upload folder of the file system. In a next step you want the layer that shows the uploaded images to be identifiable/selectable. Finally, configure a Hyperlink on the layer's search result view and define the field that contains the unique id (storage filename) of the uploaded image as key field.



Note: When using Apache Tomcat Connector, consider Settings for Request Filtering when uploading large image files (> 20 MB) via Internet Information Services (IIS).

Note: See chapter Activate Add Images for details about the configuration of this functionality for the WebOffice Sample Project.

Note: See chapter Add Images for details about using the tool in the WebOffice core client.
