WebOffice flex supports non-hierarchic as well as hierarchic predefined queries and depending on the configuration the respective tool form will be initially displayed or can be accessed from the full-text search toolbar

Non-hierarchic Queries

Hierarchic Queries



Besides WebOffice flex also enables you to use

One-click Queries

Filtering Search

Between Search



Note: VertiGIS recommends to try to cover as much as possible with the global full-text search, since it follows the widely used see what you get approach (e.g. Google search). Use predefined queries only where absolutely necessary.



Depending on your WebOffice 10.9 SP1 configuration the initial tool form can vary in its appearance. See the figures below to understand how the full-text search form appears based on your configuration environment.



User Interface

Description

flexjs_Full-Text_Search2



flexjs_Advanced_Search2

WebOffice 10.9 SP1 project contains:

full-text search (global)

List of Predefined Queries, Geolocator Query or WFS Queries that can be accessed with the ≡ Button



Full-text search is initially displayed, click the ≡ Button to switch to the list of queries in advanced search.

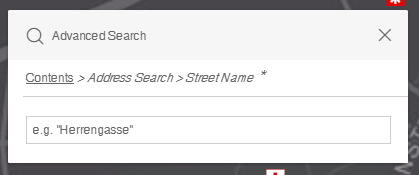

flexjs_Advanced_Search1

WebOffice 10.9 SP1 project contains:

List of Predefined Queries, Geolocator Query or WFS Queries that can be accessed with the ≡ Button

a defined Default Query



Defined default query is initially started

flexjs_Advanced_Search3

WebOffice 10.9 SP1 project contains:

List of Predefined Queries, Geolocator Query or WFS Queries that can be accessed with the ≡ Button



Since neither full-text search nor a default query is defined, the list of queries will initially be displayed. Additionally, there is no X button because of the absence of the full-text search.



Note: See chapter Icons for WebOffice flex for more information on how to create the search icons for advanced search.



Breadcrumbs

Advanced search uses a graphical control element named breadcrumbs to allow users to track their location inside of the list of queries. The more you navigate in especially hierarchic queries, more links back to the previous query step will be provided.

Breadcrumbs with non-hierarchic queries:

oContents > <name of the query>

Breadcrumbs with hierarchic queries:

oContents > <name of the query> > <hierarchical level 1 search field alias>

oContents > <name of the query> > <hierarchical level 1 selected value> > <hierarchical level 2 search field alias> > ...



In order to get back to the list of queries, users can either click on the breadcrumb Contents or use k in the right corner of the advanced search form.



Breadcrumb and X button in non-hierarchic advanced search of the WebOffice flex client

Breadcrumb and X button in non-hierarchic advanced search of the WebOffice flex client



With hierarchic queries you can use the breadcrumbs to

identify the position inside the query, i.e. in which hierarchic level you are at the moment

identify the previously made choices regarding search values

identify the search field that you are currently at

navigate to any previous position of the hierarchic query

navigate back to the list of predefined queries

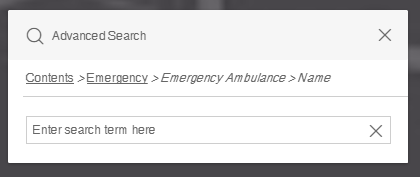

Breadcrumbs with a hierarchic advanced search in the WebOffice flex client

Breadcrumbs with a hierarchic advanced search in the WebOffice flex client



Non-hierarchic Queries

Non-hierarchic queries appear as

value list

text input with auto completion



Note: The input field type text input will be transformed into a text input with auto completion in the WebOffice flex client.

Note: The input field types value list and big value list have the same appearance in the WebOffice flex client.

Note: Mandatory search fields are marked with *.



When using a value list, all values can be accessed by opening the drop down list. With the value list with auto completion, a text input field is shown that will provide suggestions once the user starts entering a term.

Note: The configured LIKE search option has impact on the behavior of the query. I.e. if you use a LIKE comparison with LIKE search option contains, it is possible to provide a layer query that can be searched like a thematic full-text search without any wildcard. See chapter Input Control Types.



flexjs_Advanced_Search4flexjs_Advanced_Search5

Value list in the WebOffice flex client

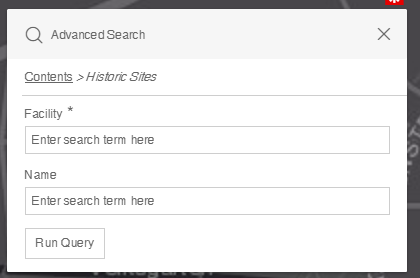

flexjs_Advanced_Search6flexjs_advanced_Search7

Value list with auto completion in the WebOffice flex client



Display of concatenation between search fields

The relationships or links between the search fields can be shown in the advanced search of the WebOffice flex. These relationships can be displayed directly in the search form to give the user a better understanding of how the respective search works.

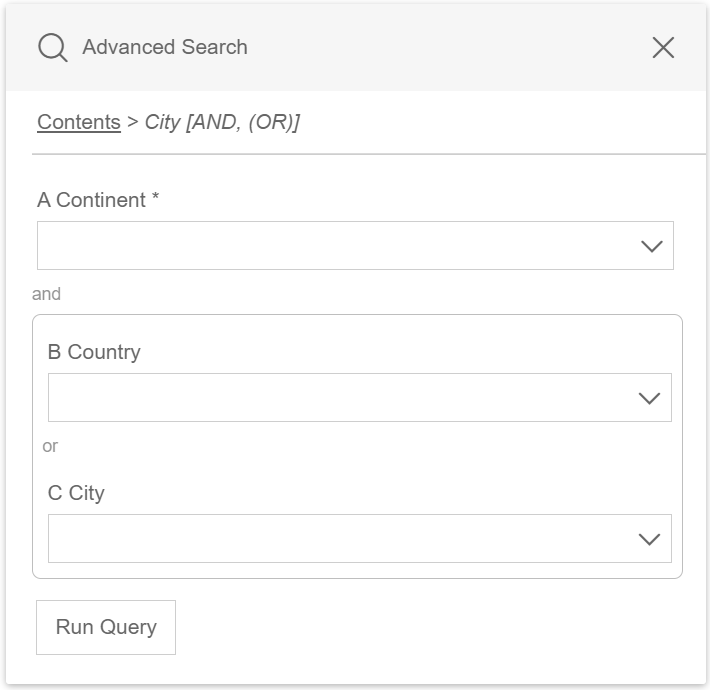

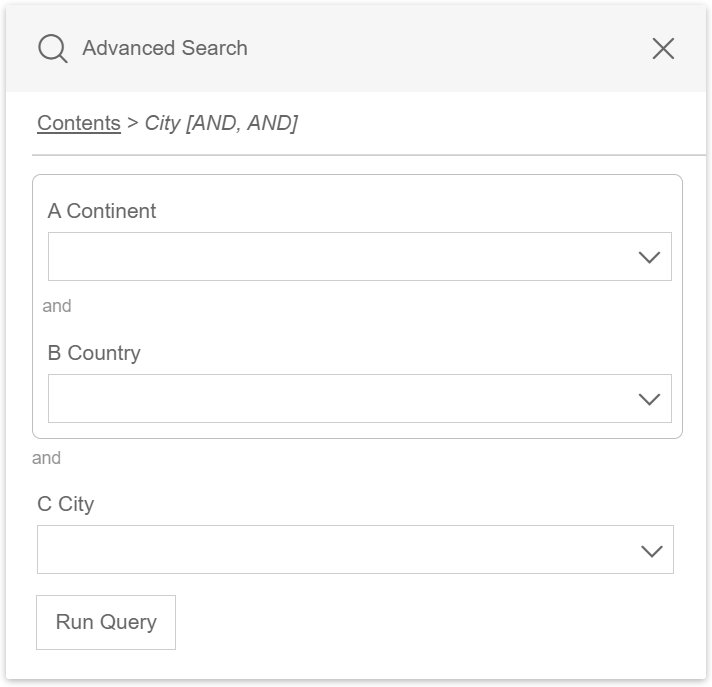

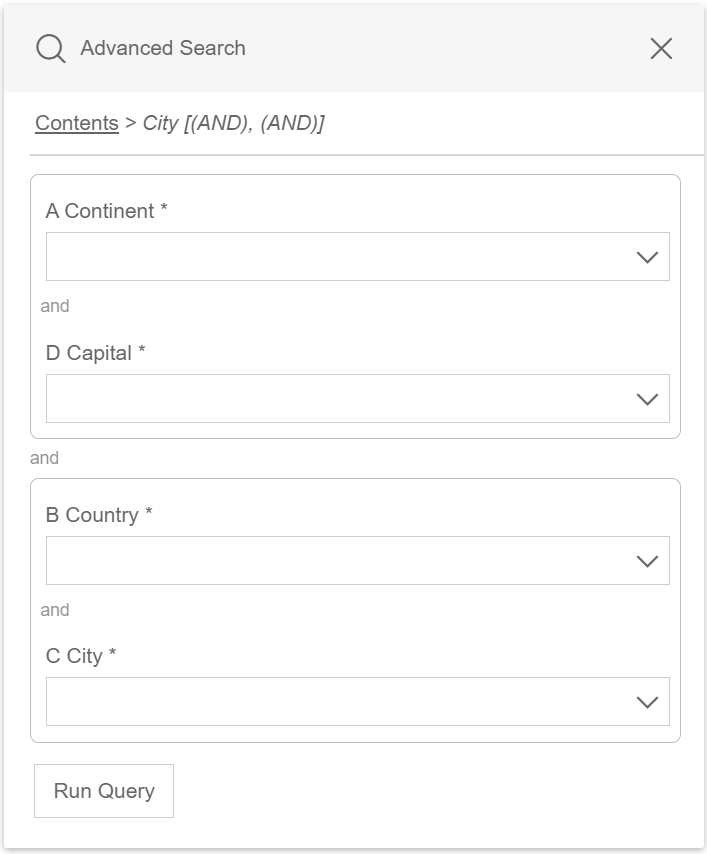

flexjs_Advanced_Search16aflexjs_Advanced_Search16bflexjs_Advanced_Search16c

Display of concatenation between search fields in the WebOffice flex client



Note: For more information on how to configure the display of the concatenation for the WebOffice flex client please see chapter common settings of the WebOffice author standalone



Hierarchic Queries

Hierarchic queries require the user to go through a search level by level. Only objects that meet the search criteria of previous levels may be found in the next hierarchic level.



Hierarchic queries appear as

value list or

text input with auto completion



Note: The input field type text input will be transformed into a text input with auto completion in the WebOffice flex client.

Note: The input field types value list and big value list have the same appearance in the WebOffice flex client.

Note: Mandatory search fields are marked with *.



Other than non-hierarchic queries, value lists with hierarchic queries don't appear as drop down lists. Instead all values of the list are visible in the first place and can be selected. After selecting a value from the first hierarchic level, only values of the second hierarchic level that match the first chosen comparison will be listed. This may continue up to five times. Additionally, you can use the Show all option to display all objects in the map.

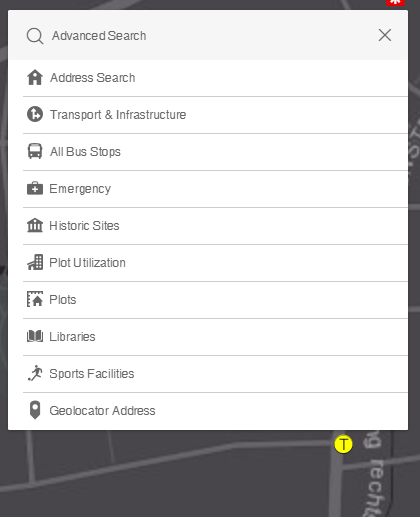

flexjs_Advanced_Search9flexjs_Advanced_Search10flexjs_Advanced_Search11

Advanced search with hierarchy and value lists in the WebOffice flex client

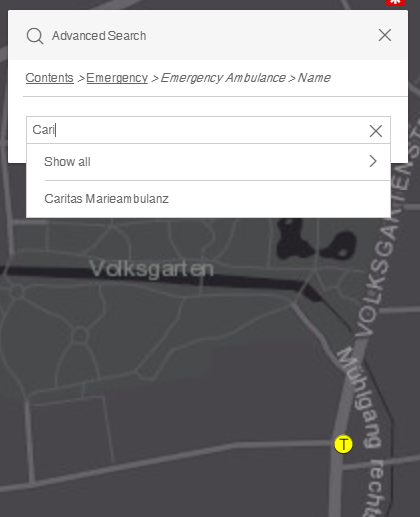

flexjs_Advanced_Search9flexjs_advanced_Search12flexjs_advanced_Search13

Advanced search with hierarchy and text input with auto completion in the WebOffice flex client



If an Integration of external application is configured on a query layer, it is displayed directly in the advanced search.

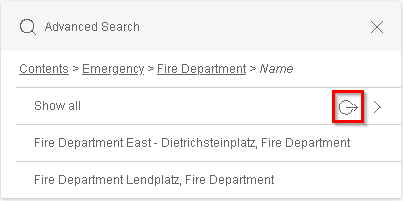

Integration of external application

Integration of external application



Note: For more information see chapter Integration (Call FROM WebOffice).



Note: The Show all option will not be available if a search field of a hierarchic level is defined as mandatory and therefor marked with *.



One-click Queries

With a one-click-query the user does not have to give any input, instead the search will be executed automatically.



Note: Please find more details about configuration in chapter Query - Where Clause.



Filtering Search

The WebOffice flex client allows a filtering search. With this option the queried features will be selected and any other features from this layer will  not be displayed in the map. So only results from the search result will be displayed in the map. When the search or the result popup is closed, the filtering will automatically be reset too.



Note: Please find more details about the configuration of a filtering search with WebOffice author in chapter Query - Where Clause.

Note: If the option filtering search is activated, the WebOffice flex client executes the filtering search by default.



Between Search

With WebOffice flex client it is also possible to perform a between search on number or date fields. They vary from other query types since the search requires the user to define two search values (from and to).



Note: Please find more details about the configuration of a between search with WebOffice author in chapter Comparison Elements



WebOffice flex supports the categorization of predefined queries. For more information about the configuration of categories for predefined queries, please see chapters List of Search Categories (information on how to create categories) and Query - Where Clause (information on how to assign categories).



Search categories in WebOffice flex client

Search categories in WebOffice flex client
