WebOffice Standard Reference > WebOffice Category > Tools

Note: At the time measuring in projects using a geographic coordinate system is not supported.

Measure point tool - WebOffice category

Property

Description

Use tool?

Specify whether this Tool is available in the WebOffice client (Yes) or not (No).

Enable 3D measuring

3D measuring based up on raster data.

Note: For 3D measuring at least an elevation layer hast to be configured. See chapter Height Info Raster Layers ff. for details.

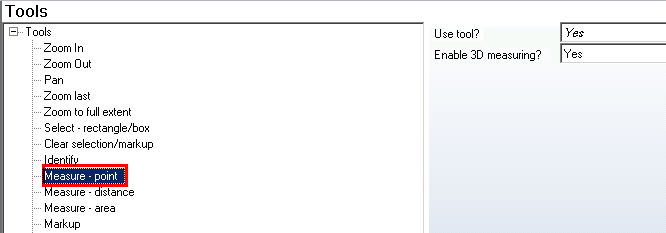

Tool Measurue Point - WebOffice category

Measure point tool in WebOffice 10 R3 client

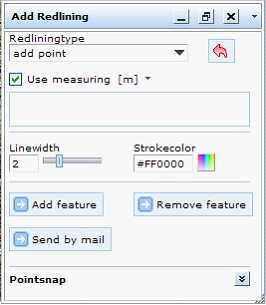

Measure point tool form

If use measuring is enabled, the point coordinates will be shown in the box below the checkbox. Using the clipboard button, it is possible to copy the point coordinates to the clipboard. The unit setting has no effect on the measure point functionality. Measuring a point means to show the actual coordinates depending on the spatial reference.

Point coordinates and copy to clipboard button in WebOffice 10 R3 client

See chapter Snap layers for details on how to configure Snap layers for exact measuring.

See chapter Markup for details on specifying the default point, line and area styles and colors used in the Measure tools.

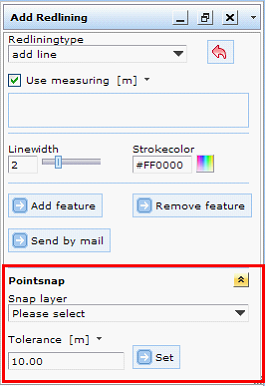

Snapping in Measure point tool form

To delete specific measure/redlining elements all elements, no matter of which type they are, are listed in the Current Objects section of the markup tool dialog.

The selected object is displayed in the map with a blinking green dot to identify it. The object can be deleted pressing the "x" Button next to it.

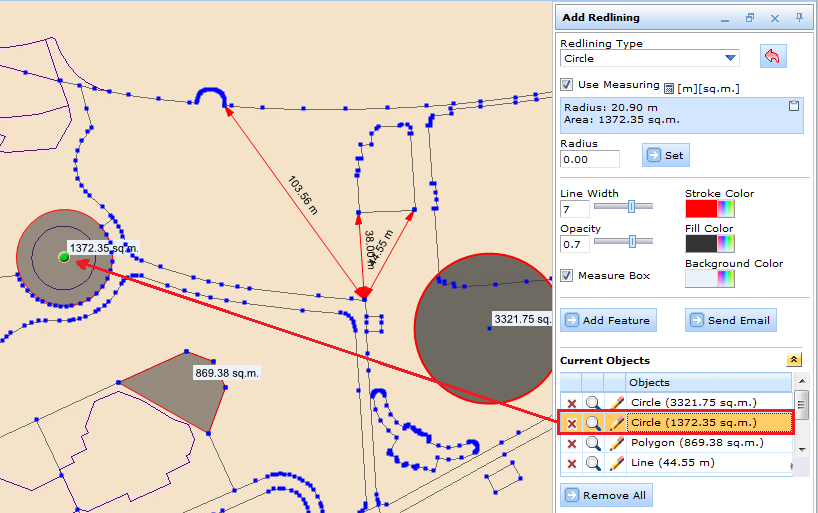

Current objects section in Markup tool dialog - WebOffice 10 R3 html client

To zoom to the selected markup element, press the magnifier button.

Zoom to the selected markup element - WebOffice 10 R3 HTML client

If 3D measuring is enabled and Height Info Raster Layers are configured, it is possible to show the 3D measures in an own result grid.

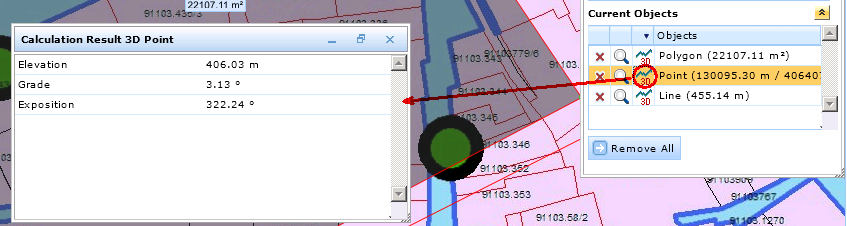

3D measures of a point measure object

Measure Point
