Measure Distance |

|
Measure Distance |
|
Note: At the time measuring in projects using a geographic coordinate system is not supported.
Measure distance tool - WebOffice category
Property |
Description |
Use tool? |
Specify whether this Tool is available in the WebOffice client (Yes) or not (No). |
Show overall length |
Displays (Yes) or not (No) the overall length of a polyline. The single segment lengths is always shown and aligned with the measure line. |
Show segment lenght? |
Specifies if by default the line segments length will get displayed in the map ('Yes') or not ('No'). |
Show vertices? |
Specifies if by default the coordinates of the vertices will get displayed in the map ('Yes') or not ('No'). |
Allow subtotal distance? |
Specifies if the subtotal distance from the beginning of a polyline to each vertex can be displayed ('Yes') or not ('No', Default). |
Show subtotal distance? |
Specifies if the subtotal distance from the beginning of a polyline to each vertex are by default displayed ('Yes') or not ('No', Default). |
Enable 3D measuring? |
3D measuring based up on raster data. Note: For 3D measuring at least an elevation layer hast to be configured. See chapter Height Info Raster Layers ff. for details. |
3D diagram height |
Elevation Data diagram height |
3D diagram width |
Elevation Data diagram width |
Horizontal scale divisions |
Horizontal scale divisions count |
Vertical Scale divisions |
Vertical scale divisions count |

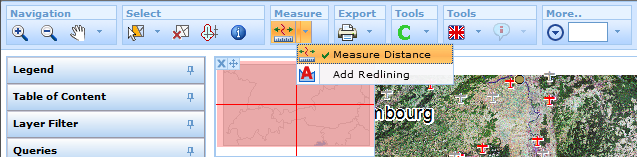

Measure distance tool in WebOffice 10 R3 client

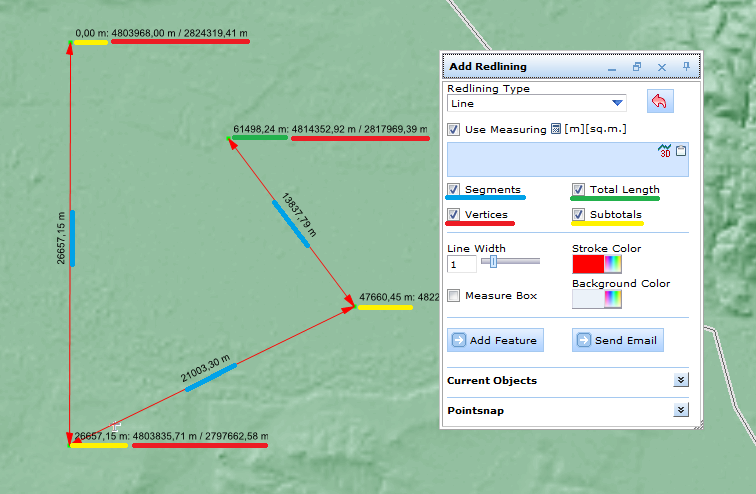

Measure distance tool form
If use measuring is enabled and the features are activated in the project configuration, the four attributes segments, total length, vertices and subtotals can be shown in any type of combination. By using the checkboxes they can be activated/deactivated. It is also possible to copy the measurements to clipboard using the button next to the coordinate display.
Line measures and copy to clipboard button in WebOffice 10 R3 client
If Support orthogonal measuring? is enabled, then two more fields for Distance and Normal are displayed on the dialog window. See chapter Markup how to configure this parameter.

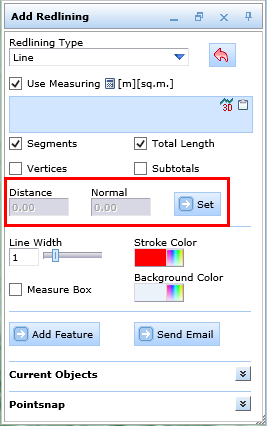

Orthogonal measuring
Once you draw a distance line and set a point, the input fields for Distance and Normal are active and values can be entered. If you then click on the Set button another segment of the line will be drawn.

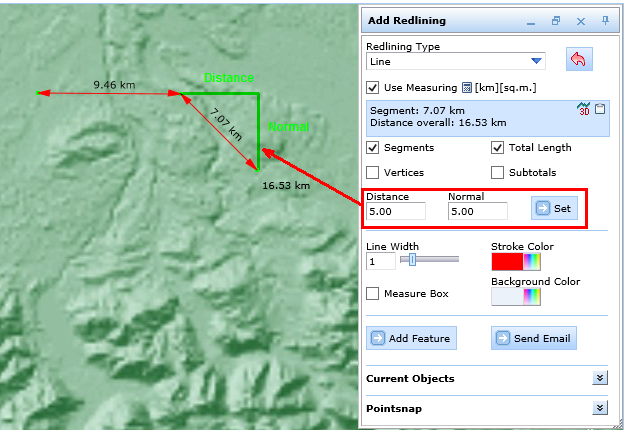

Use orthogonal measuring
Hint: You can influence the direction of the segment by changing the sign of the values for Distance and Normal ('+' oder '-').
See Chapter Snap Layers for more details on how to configure Snap layers for exact measuring.
See Chapter Markup for more details on specifying the default point, line and area styles and colors used in the Measure tools.

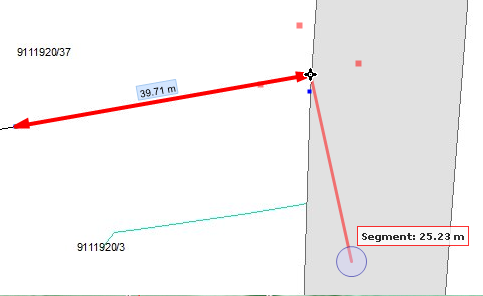

Enhanced support for perpendicular distances
To measure perpendicular distances very quickly, there are three guiding points to help with orientation (see chapter Markup, which is in one of the following chapters, in case the Markup tool has been configured before). The user can drag and drop (move) an existing vertex. This can be done when hovering over any point/vertex during the measuring process to change its location.
Moving a vertex while measuring - WebOffice 10 R3 html client
To delete specific measure/redlining elements all elements, no matter of which type they are, are listed in the Current Objects section of the markup tool dialog.
The selected object is displayed in the map with a blinking green dot to identify it. The object can be deleted pressing the "x" Button next to it.
Current objects section in Markup tool dialog - WebOffice 10 R3 html client
To zoom to the selected markup element, press the magnifier button.
Zoom to the selected markup element - WebOffice 10 R3 HTML client
If 3D measuring is enabled and Height Info Raster Layers are configured, it is possible to show the 3D measures and diagram in an own result grid.

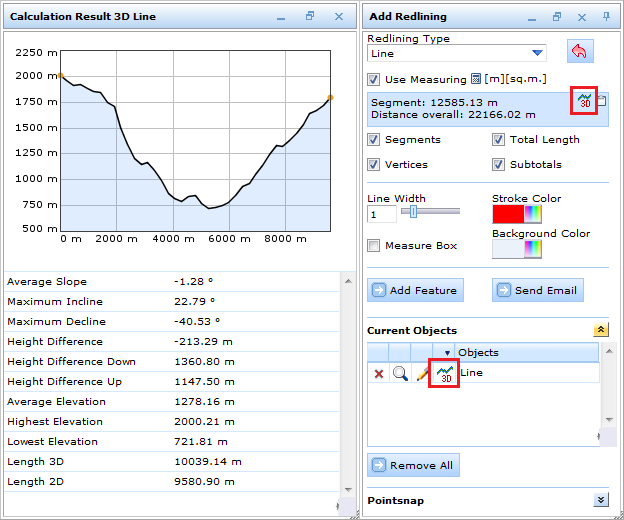

3D measures and diagram of a distance measure object
Note: In order to access the measure result of the 3D line there are two ways: If the line is still to be edited, the chart can be accessed with a click on the top "3D" button in the "Use Measuring" box. After a line has been finished, the 3D measures can be displayed via the "3D" button in the "Current Objects" section.
