Measuring Context Menu Options |

|
Measuring Context Menu Options |
|
When measuring a distance or an area, a vertex manipulation, vertex insertion or movement of the whole redlining is possible using the context menu (right mouse button).

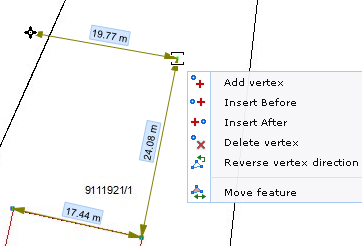

Measuring context menu in WebOffice 10 R3 html client
Menu item |
Description |
|
Add vertex: Add a vertex to the specified location on the line. |
|
Insert Before: Insert a vertex between (mid-distance) last and active vertex. |
|
Insert After: Insert a vertex between (mid-distance) active and next vertex. |
|
Delete vertex: Delete active vertex. |
|
Reverse vertex direction: Reverse the vertex direction |
|
Move feature: Move the complete line or polygon. Anchor point is the active vertex. |
WebOffice 10 R3 Measuring context menu
