Measure Perpendicular |

|
Measure Perpendicular |
|
Note: At the time measuring in projects using a geographic coordinate system is not supported.
This tool can be used for measuring distances perpendicular to a base line specified before.

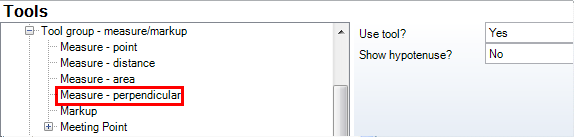

Measure perpendicular tool - WebOffice category
Property |
Description |
Use tool? |
Specify whether this Tool is available in the WebOffice client (Yes) or not (No). |
Show hypotenuse? |
Calculates and displays the length of the hypotenuse additionally (Yes) or not (No). |
Measure perpendicular tool reference - WebOffice category
Measure perpendicular tool in WebOffice html client
The newly measured points can also can also be

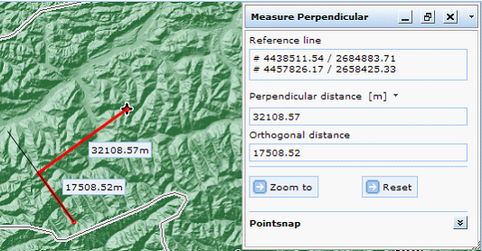

Measure perpendicular tool form and graphic display
With WebOffice 10 R3 multiple triangular measures are supported.
See chapter Snap Layers for details on how to configure Snap layers for exact measuring.
See chapter Markup for details on specifying the default point, line and area styles and colors used in the Measure tools.
