Snap Layers |

|
Snap Layers |
|
Use Snap layers for providing Snap functionality in all Measure, Markup and specific Selection tools (the user will then be able to snap to vertices of objects of the configured Layers).

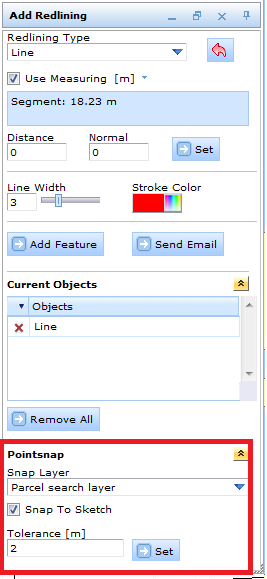

Snap tool form in WebOffice 10 R3 client
Enable the Snap to Sketch option in the snap tool form in order to snap on vertices and intersections of existing redlining sketches.

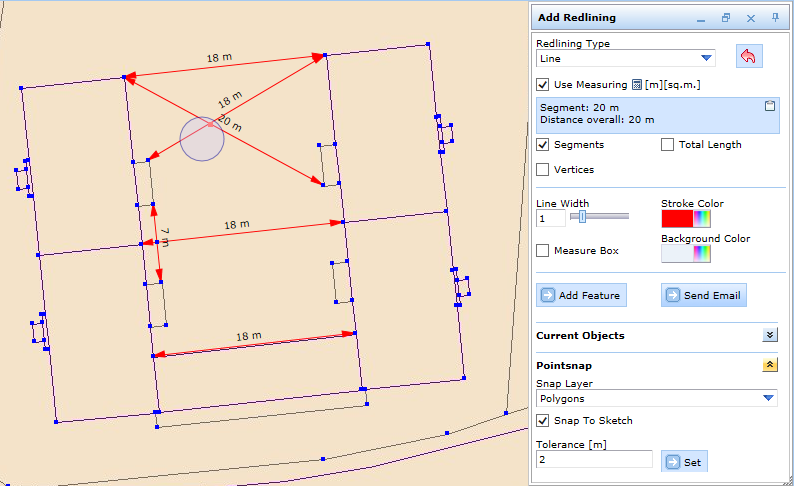

Snap to Sketch in Snap tool form in WebOffice 10 R3 client

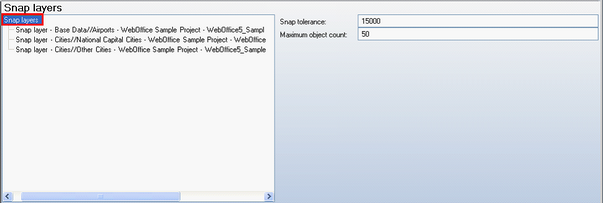

Snap layers configuration
Property |
Description |
Snap tolerance |
Default Snap tolerance (geodata units). |
Maximum object count |
Specifies the maximum object count (features) supported by the Snap tool. Note: Increasing this value increases the time the client has to wait for preparing the Snap tool. |
Snap layers configuration
It is possible to specify Snap layer or Snap profile.

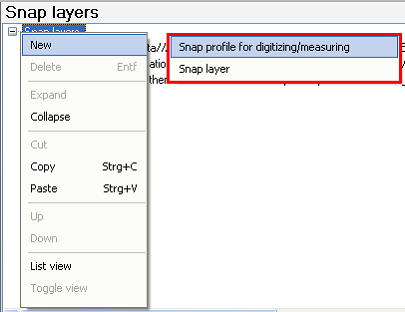

Snap layer and / or Snap profile element
Concerning the Snap layer, it is possible to configure a specific Layer from one of the Map Services of the Map collection.

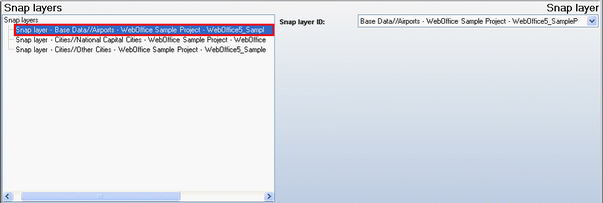

Snap layer configuration
Concerning the Snap profile for digitizing and measuring, it is possible to group together a collection of Snap layers. The Snap profile then is available as additional option in the Snap tool form of the WebOffice 10 R3 client.

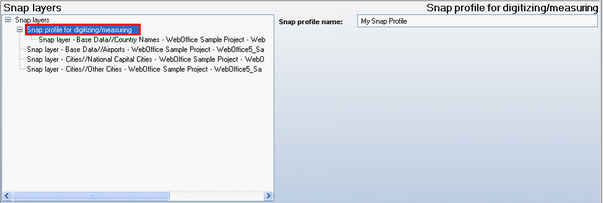

Snap profile configuration
Property |
Description |
Snap profile name |
Name of the Snap profile displayed in the WebOffice client. |
Snap profile configuration
