In WebOffice 10 R3 a static pre-rendered Legend image can be configured for every map view.

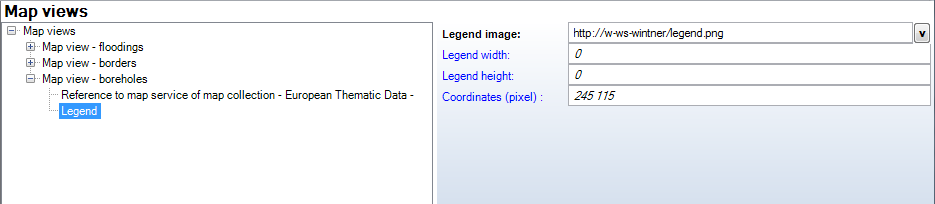

Legend configuration
Property |
Description |
Legend image |
URL to image used as static Legend image. Note: URL may be absolute or relative (to web application root, e.g. 'pub/legend.jpg'). |
Legend width |
Legend width in pixel. Using the values 0 for width and height will cause the legend window to automatically maximize. |
Legend height |
Legend height in pixel. Using the values 0 for width and height will cause the legend window to automatically maximize. |
Coordinates (pixel) |
Coordinates (in pixel) of left top of legend window |
configuration legend
If there are several map views and a static legend image is configured only on one map view or one map element, the text “No legend information available” will be displayed for the other map views.
It is recommended to use ArcMap functionality to generate the Legend image file. See chapter Legend on how to create a static legend image out of ArcMap.
Note: A static legend can be provided for every supported language. If you want to support several languages, use the translations function of the Extras Menu
and provide a path for every legend image per language. E.g. “mapview1” has the static legend image “pub/images/legend1_en.jpg”. For supporting the project in German language too, translate “mapview1” to “Kartenansicht1” and provide a German legend in “pub/images/legend1_de.jpg”.
Note: A static legend can also be integrated into the print layout using a logo-element with the name 'syn_legend'. (For more information on how to configure the print layout, please refer to Chapter Custom Function Fields, as well as in the WO plot author_User Manual 10 R3 SP1.pdf). The print layout also responds to multi-lingual configured legends. Meaning that an existing static legend within a project is language-dependent fed into the print of WebOffice 10 R3.
