North Arrow |

|
North Arrow |
|
Use the North arrow element for specifying the North arrow displayed on top of the map.

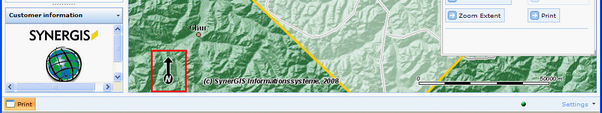

North arrow in WebOffice 10 R3 client

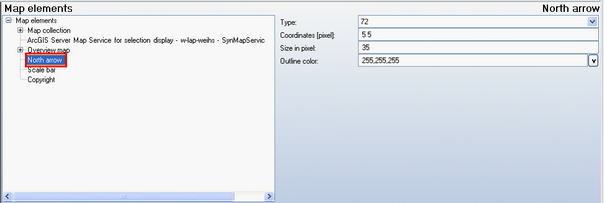

North arrow configuration
Property |
Description |
Type |
North arrow for main map according to ESRI North True Type Font. See Figure below for details.  ESRI North True Type Font
|
Coordinates in pixel |
Coordinates (in pixel) of North arrow from lower left corner of map window. |
Size in pixel |
Size of North arrow (in pixel). |
Outline color |
Outline color of North Arrow. |
North arrow configuration

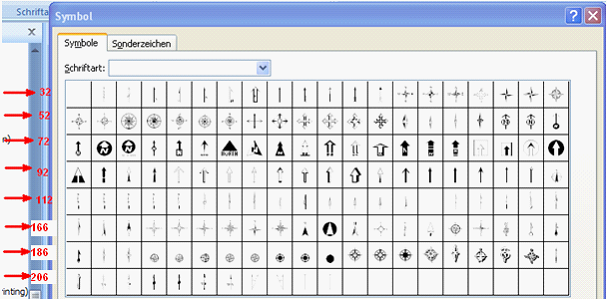

North arrow styles. On the left the type (number) for the first entry in each of the rows is displayed.
Note: For printing a North arrow you must insert a North arrow Layout element in the ArcMap Layout.
