Scale Bar |

|
Scale Bar |
|
Scale bar displayed on top of the main map. If no unit label is defined then 'm' is used instead as default.

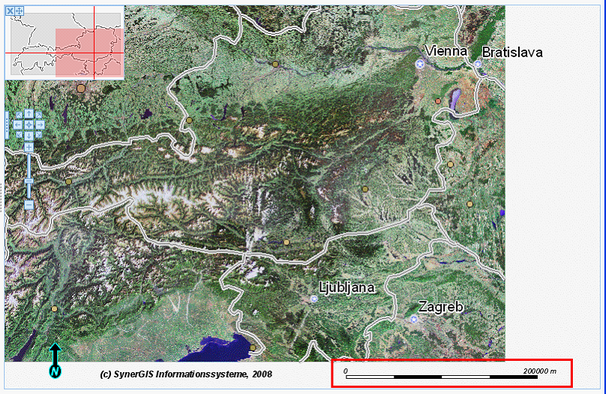

Scale bar display in WebOffice 10 R3 client
Scale bar configuration
Property |
Description |
Unit label |
Unit label shown in the scale bar. |
Distance in pixel |
Distance of the Scale bar to the bottom right of the map. Coordinate base (0 0) is bottom right. |
Length of Scale bar |
Length of Scale bar in percent of the map image width. |
Height in pixel |
Height of Scale bar in pixels. |
Color of scale bar |
Color of scale bar. |
Color of scale bar segment |
Color of scale bar segment. |
Outline color |
Background color of scale bar. |
Font |
Font. |
Font size |
Font size. |
Font color |
Font color. |
Font style |
Font style. |
Scalebar units |
Units used for calculation of scale bar separators and scale bar length caption. Note: If this field is empty, then the map unit will be used for representation of the scale bar. |

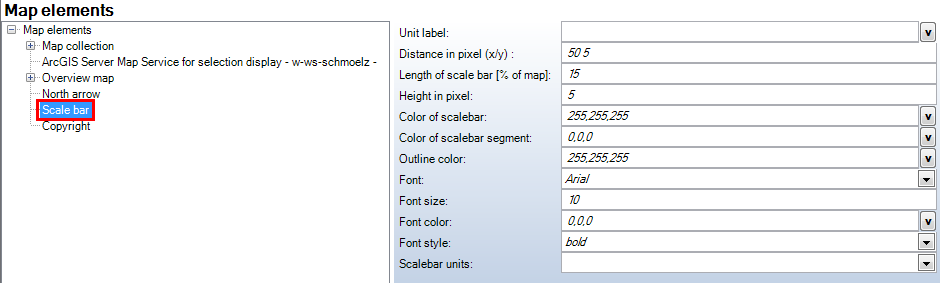

Scale bar configuration
Note: For printing a scale bar you must insert a scale bar Layout element in the ArcMap Layout.
