By configuring this function it is possible create an index plot based on an individually drawn sketch. This way the user is enabled to produce a print series along a line object, e.g. a stream center line.

Note: The client preview of the printing extent does not comply with the effective printing extent.

Note: The single sheets of the index plot do not have a north arrow. If a north arrow is desired on the print the Esri north arrow has to be configured in the layout! In this case these printing templates are not to be used in combination with rotating prints.

Note: When using external service there might arise the problem of missing tiles on the last print due to overlapping beyond the virtual index plot line.

In WebOffice author create a new print function "Index plot".

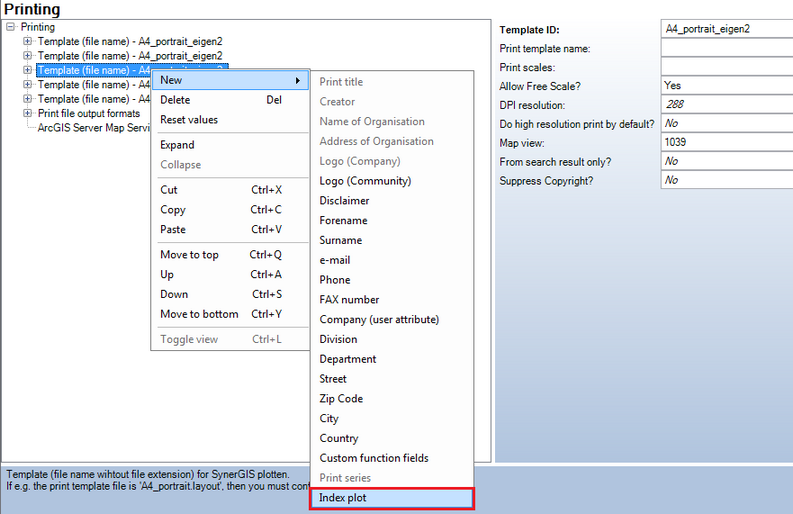

Create the print function 'Index plot'

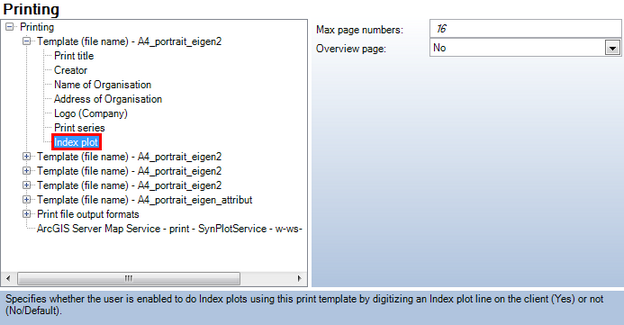

Index Plot - Configuration

Property	Descritption
Max page numbers	Maximum page numbers
Overview Page	Specifies the inclusion of an overview page in the Print series

Index Plot - Properties

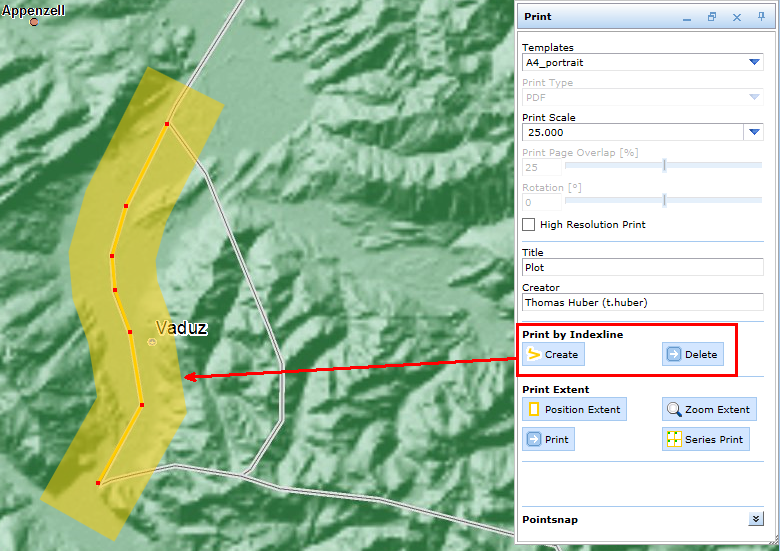

For generating an index plot please select the button 'Create' (only available if this function is enabled) in the print tool dialog and draw the index line.

Note: Please be sure to define a valid print scale first.

Print a print series along an individually drawn sketch - WebOffice html Client

The result is a multi-page pdf document.
