Analyse: Find Best Route

When calculating a route, it is possible to identify the fastest, the shortest or the most interesting route regarding landscape depending on the impedance that was chosen. See the following links that describe how to define routing profiles with various properties:

Cost

List of Routing Restrictions

Directions

Hierarchy

Analysis Options for Stops

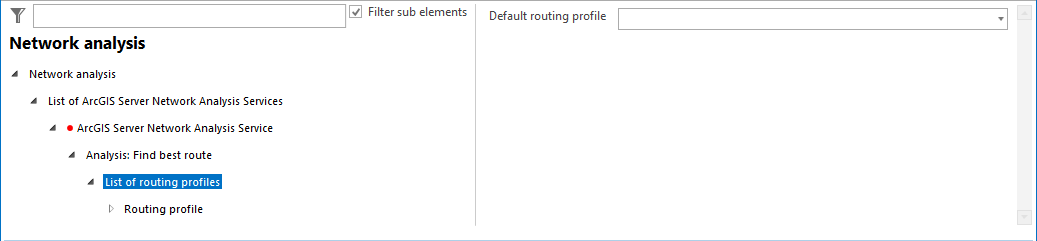

List of routing profiles configuration

List of routing profiles configuration



Property

Description

Default routing profile

Specifies the routing profile to be selected in the list of the profiles (when having any). If not configured, the very first one will be used.

List of routing profiles properties



Configure a number of Routing Profiles in the List of Routing Profiles. In case a configured routing profile is invalid, it will not be available in the WebOffice 10.9 SP1 clients.



icon_comment

If the subnode Find best route is created, a routing profile with corresponding subnodes must be created, otherwise the project configuration is not valid.

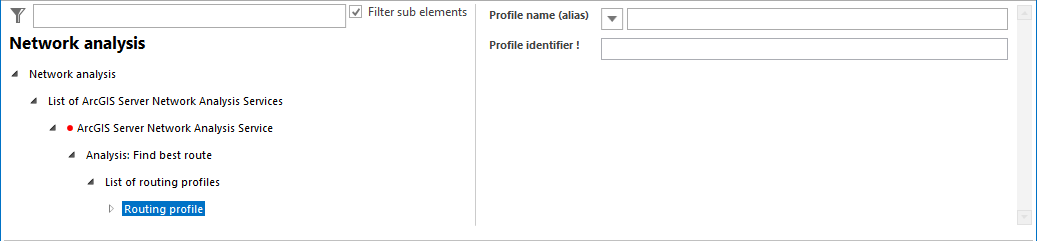

Routing profile configuration

Routing profile configuration



Property

Description

Profile name (alias)

Profile name that will be displayed in the GUI.

Example: Truck (24 ton)

Profile identifier

Unique profile identifier.

Example: truck_24_tons

Routing profile properties



icon_comment

When using the routing service from ArcGIS Online (https://route.arcgis.com/arcgis/rest/services/World/Route/NAServer) you will find the parameters for the configuration of Analyse: Find Best Route in the ArcGIS Online help: https://resources.arcgis.com/en/help/arcgis-rest-api/#/Route_service_with_synchronous_execution/02r300000036000000/.



Property

Description

impedanceAttributeName

Attribute name in Cost

directionsTimeAttributeName

Time attribute in Directions

restrictionAttributeNames

Attribute name of Restriction in List of Routing Restrictions

attributeParameterValues

Custom attribute Name of Routing Parameter in List of Routing Restrictions

Parameters of ArcGIS Online routing service
