List of Routing Restrictions

Configure a List of Routing Restrictions to define any restrictions for the used network elements in order to privilege or penalize certain elements. Depending on the network you can model one-ways, forbidden crossovers, weight limitations, etc.

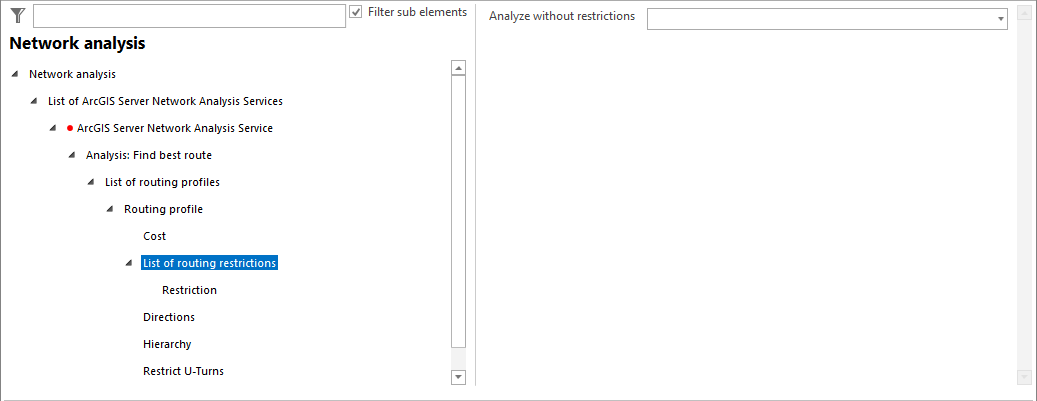

List of routing restrictions configuration

List of routing restrictions configuration



Property

Description

Analyse without restrictions

Yes indicates that no network attributes should be used as restrictions. If set to No then only the default attributed configured in the network will be considered.

List of routing restrictions properties



Define as many Restrictions as you want to be used in your route calculation. Consider that a large number of restrictions has negative effect on the performance of the route calculation.

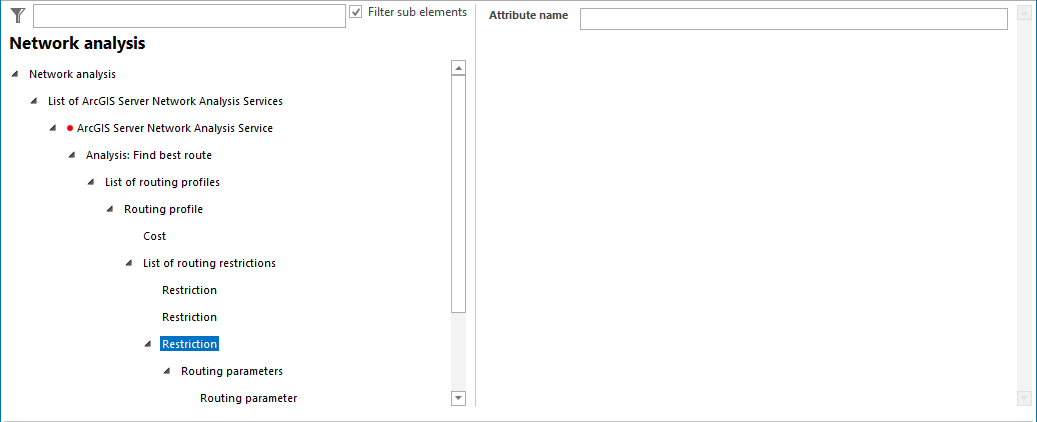

Restriction configuration

Restriction configuration



Property

Description

Attribute name

Attribute name that will get used as restriction.

icon_comment

For this parameter use the attributeName of the Attribute Parameter Values of the routing service.

Restrictions of a routing service

Restrictions of a routing service

Restriction properties



Use the option to configure Routing Parameters in case you want to give users the option to specify a restriction before calculating (e.g. the user enters a certain weight, so the route will be optimized for vehicles of this weight).

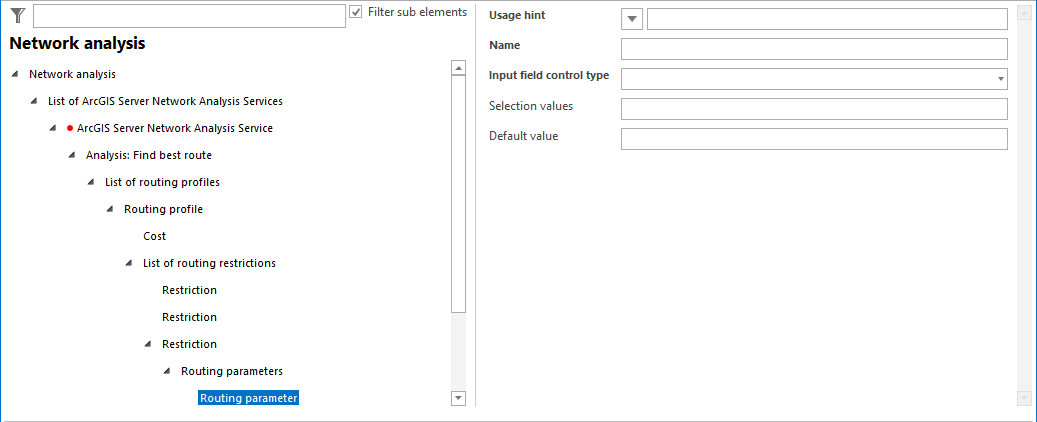

Routing parameter configuration

Routing parameter configuration



Property

Description

Usage hint

Usage hint displayed in the client user interface (GUI).

Name

Name of the parameter, as defined in the network.

icon_comment

For this parameter use the parameterName of the Attribute Parameter Values of the routing service.

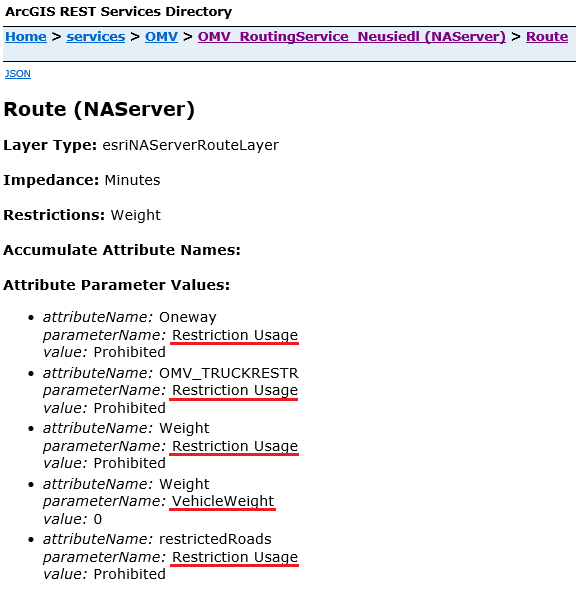

Parameter in the routing service

Parameter in the routing service

Input field control type

Specifies the type of the input field:

none - using default value, not displaying any control in the GUI

textbox - for strings and fields of type text (can also be used for numbers)

listbox - for lists

Selection values

Provide a list of allowed values using the | symbol for separating values e.g. 18|26|32 (tons).

Default value

Default value.

Routing parameter properties



icon_cross-reference

See chapter Routing for details about the use of routing in the WebOffice core client.
