Configure the Directions element to manage the route description in the WebOffice 10.9 SP1 clients.

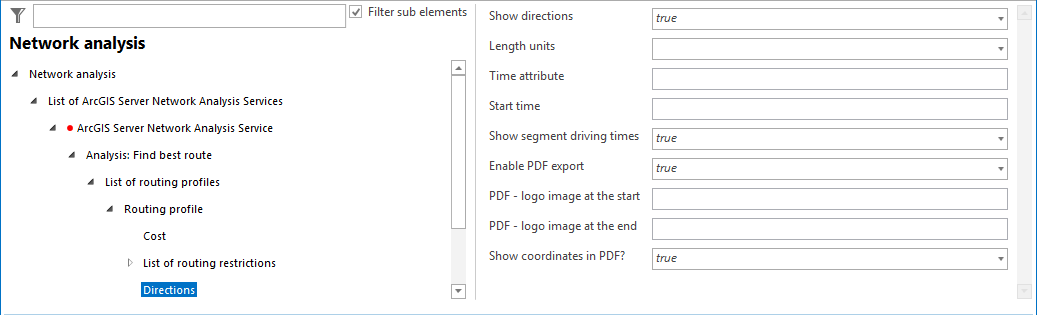

Directions configuration

Directions configuration



Property

Description

Show directions

If Yes (default), directions will be generated and returned with the analysis results.

Length units

The length units to use when computing directions. The default is as defined in the network layer.

Time attribute

The name of network attribute to use for the time of travel when computing directions. The default is as defined in the network layer. Example: MINUTES.

icon_comment

For this parameter use the Directions Time Attribute Name of the routing service.

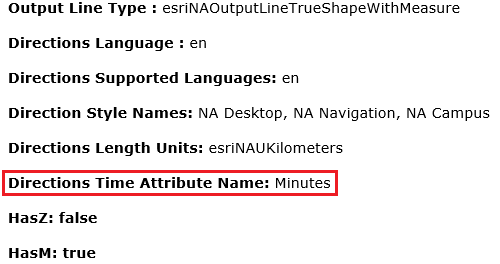

Time attribute of the routing service

Time attribute of the routing service

Start time

The time the route begins. If not specified, the solver will use the default as defined in the network layer. The route feature or features that are output by the solver have StartTime and EndTime properties when a time-based impedance is used with a start time. The StartTime value will match the value that you enter in the Use Start Time settings of the route analysis layer. The EndTime will be calculated from the start time and the duration of the route. Example: 8:00AM.

Show segment driving times

Show the expected driving time for each segment of the calculated route (Yes, default) or not (No).

Enable PDF export

Enable the button to create a PDF document with the directions (Yes, default) or not (No).

PDF - logo image at the start

URL to the image file that shall be shown at the start of the generated PDF document.

Example: pub/images/logo.jpg

PDF - logo image at the end

URL to the image file that shall be shown at the end of the generated PDF document.

Example: pub/images/logo.jpg

Show coordinates in PDF?

If Yes (default), the WGS84 coordinates of the (intermediate) stops will be shown in the pdf document.

icon_cross-reference

Formatting of the coordinates can be done via the language attribute ROUTING.PDF.STOP_COORDINATES. Find more details about formatting WebOffice 10.9 SP1 custom texts in chapter WebOffice Messages.

Directions properties



icon_cross-reference

See chapter Routing for details about the use of directions in the WebOffice core client.
