The Tool Maptip provides the user the possibility to query information of objects depending on the configuration either via clicking the appropriate object or by moving the cursor over the desired object. Depending on the project configuration, the user has the possibility to activate this tool right from the start of the project. If the presentation of the results is configured using mouse over, additional tools, such as Zoom In, Zoom Out or Pan, which do not require a tool form (one-click tools) can be activated and used simultaneously.

The behavior of Maptip can be customized by different configurations of the Identify- MapTip tool and is explained in the following table:



Identify MapTip tool configuration

Identify MapTip tool configuration





Configuration

Behaviour

MapTip function activated with startup?

Specifies whether to provide MapTip functionality from beginning on in the WebOffice core client.

Transparency

Defines the transparency for the MapTip

display above the map.

Enable copy and paste?

Enable copy and paste in MapTip window

Remove MapTip after mouse move?

Removes the current MapTip result if the

next MapTip query returns no result (true),

or only if a new MapTip result is to be

shown (false / Default).

MapTip window fixable?

Specifies whether click in the map fixes the

MapTip window (true) or not (false / Default).

Use false for optimized map navigation.

Single click to display? (flex flash)

Using single click event to display the MapTip.

This setting is only relevant for the WebOffice flex (flash) client.

Using single click to display? - true

Maptip is called by clicking on the corresponding object

Result window is automatically pinned

Result window can be closed by clicking the Close button

Using single click to display? - false

Maptip is called if there is no mouse movement within the configured number of milliseconds (time between 2 requests)

Note: For more information about configuring Maptip as a subelement of Layer Queries, refer to chapter MapTip.

Using single click to display? - false

Display time = 0

The result window is automatically pinned. The behavior is the same as with Mapitp by single click

Using single click to display? - false

Display time > 0

The result window is not automatically pinned and will be removed after the configured time without further action.

Using single click to display? - false

Display time > 0

MapTip window fixable? - true

Click on the map to pin the result window. A second click in the map or on the close button removes it again. This function is headed as a message in the result window.

Using single click to display? - false

Display time > 0

MapTip window fixable? - false

By clicking on the map you can navigate. The result window heads a corresponding message. By clicking on the text the result window can be pinned. A further click on the text or on the close button closes the result window again.

Optional notification at project start?

Optional configurable (language resources) notification should be displayed, when using single click (or touch) event to display the MapTip.

Open tool form when activating tool?

Specifies whether the tool form will be displayed by default when activating the tool (affects only the WebOffice flex client).

Use tool?

Control if this tool is available in the WebOffice Client or not.

Show multiple MapTip results?

Specifies if multiple layers and multiple features per layer should be shown. (only core/coreJS)

Maximum features for multi-MapTip.

The maxmimum number of features that can be shown in multi MapTips.





Via the correlated drop down list the user can choose between the querying of the whole visible topics or only single layers which can be chosen from the Maptip Tool.

icon_comment

A better overview of the available Layers can be accomplished by the configuration of categories (see the following figure). More details of this topic are shown in chapter List of Layer categories.

If a polygon is fully overlapped by another polygon of the same layer, the smaller one is going to be selected for the maptip.

If attribute objects does not contain any value, the empty attribute fields will be automatically excluded by the maptip. This behavior optimizes the maptip with many visible attributes.



Maptip layer selection including layer categories

Maptip layer selection including layer categories





If you click on identifiable objects within the map, the maptip offers

a direct access to the related pictures of the object,

a direct access to a neighbor search,

a direct access to the linked related objects,

a direct access to the linked external applications of the object,

a direct access to the settings of an WebOffice ePaper reports and

the take over of identified objects to the selection of the search result.



Maptip result in WebOffice core client

Maptip result in WebOffice core client



Icon

Function

Description

core_MapTip4

Add to Result

Adds the current identified object to the search result.

core_MapTip5

Neighbor Search

If the tool neighbor search is configured, these function can be used directly within the maptip.

core_MapTip6

Generate Report

If an WebOffice ePaper Template is available, this button can be used to create the associated report.

core_MapTip7

External Application

If an object is linked to an external application, the external application can be started by using this button.

Maptip functionality



If more than one picture is linked with the identified object, the user can click through the single pictures via a gallery. The order of the pictures is linked to the order of the search result fields within the configuration.



MapTip images within WebOffice core client

MapTip images within WebOffice core client

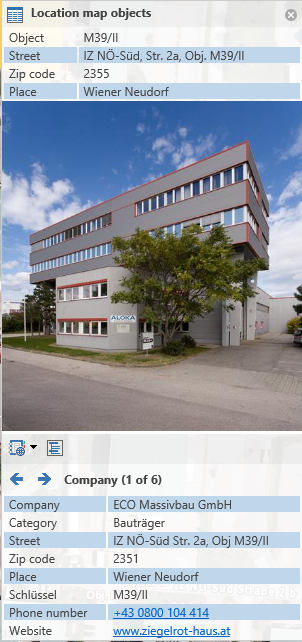

Relates can also be displayed in MapTip within the WebOffice core client. The user can use the arrow buttons to move between the relates and also to display different pictures of each relate. Hyperlinks and telephone numbers can also be resolved from the relate.

Relates in Maptip of WebOffice core client

Relates in Maptip of WebOffice core client



icon_cross-reference

See chapter Identify - Maptip for more information about the configuration of the tools within the WebOffice author standalone.

See chapter Maptip for more information about the layer specific Maptip configuration within the WebOffice author standalone.

See chapter Neighbor search for more information about the configuration of the neighbor search within the WebOffice author standalone.

See chapter Integration of external application for more information about the configuration of for example linked images within the WebOffice author standalone.

icon_comment

The image of the progress bar for the loading process of the maptip can be user customized via the properties_weboffice_user.xml file. For configuration please refer to chapter client_workspace directory.

<record jsxid="toolmaptip.request.icon type=" jsxtext="images/toolmaptip_request_32x32.gif"/>

<record jsxid="toolmaptip.request.hotspot.x type=" jsxtext="20"/>

<record jsxid="toolmaptip.request.hotspot.y type=" jsxtext="20"/>
