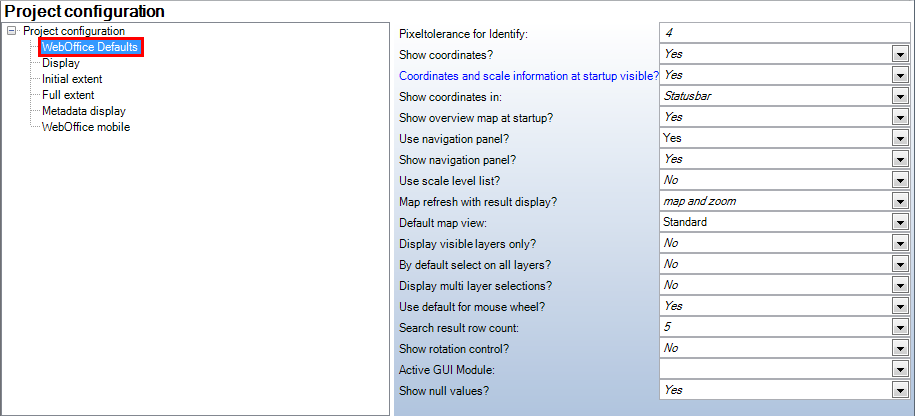

WebOffice Defaults

Property

Description

Pixel tolerance for Identify

Pixel tolerance when clicking into the map to identify objects. Around the click point a buffer is created and used for search (calculated by adding the defined number of pixels to the point for right, left, bottom and top).

Note: This parameter is also valid for

•Free Labeling tool

•IDENTIFY tool (WebOffice map widget)

Show coordinates?

Specifies whether the current coordinates of the mouse pointer (position) are shown or not in the WebOffice html client status bar.

Note: In WebOffice flex client this parameter will control if the current coordinate will be shown in the widget with scale and coordinate information.

Coordinates and scale information at startup visible?

Coordinates and scale information are visible (Yes), or minimized (No)at startup in the WebOffice flex client.

Note: This is a WebOffice flex specific parameter.

Show coordinates in

Specifies whether the current coordinates are displayed in the status bar (default) or on the map.

Note: If your users use Mozilla Firefox or IE9 it is recommended to show the coordinates in the map because of the missing (FF4, IE9) or restricted (FF3) browser status bar.

Show overview map at startup?

Specifies if overview map displays at start up (Yes) or not (No).

Use navigation panel?

Specifies if the navigation panel is provided to the user (Yes) or is not displayed at all (No).

Show navigation panel?

Specifies if navigation panel is displayed at start up (Yes) or not (No).

Use scale level list?

Specifies if a list of scale levels can get displayed next to the navigation panel (Yes) or not (No, default value). Works only in project configurations with fixed level of detail and when the navigation panel is used.

Lodlevel List with five fixed levels

Map refresh with result display?

Specifies whether for displaying search results the map immediately gets updated showing the selected objects (Yes) or not (No). Default behavior is specified only.

Note: The user may change behavior manually in the WebOffice html client.

Default map view

Specifies the Map view to be used for initial map display. Especially useful if no Table of contents of whole map collection (see Table of Content (TOC of Map Collection) is configured.

Display visible layers only?

Defines if all ('No') or only the layers actually visible in the map ('Yes') may be selected in identify, select or MapTip tool form.

By default select on all layers?

Specifies whether to preselect Visible layers for selection and info tools by default.

"Select all visible layers" option in WebOffice html client

Display multi layer selections?

Specifies whether to graphically display multiple layer selections. If "Yes" is configured, a button "Display All Features" is shown below the feature summary window of a spatial selection.

"Display All Features" button below "Feature Summary" in WebOffice html client

Use default for mouse wheel?

Specifies whether to zoom in when moving the mouse wheel towards the map display (Yes) or zoom out (No).

Search result row count

Specifies the height of the search result window (unit is count of result rows).

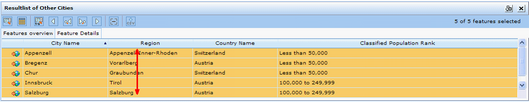

Search result row count in WebOffice html client

Note: In the WebOffice mobile client this parameter will also regulate the number of saved suggestions if parameter Persist client state? is set to "Yes".

Show rotation control?

Specifies whether to provide the rotation control in the WebOffice 10 R3 client or not. The rotation control enables users to rotate the map by whatever angle.

This is very useful for better visualization of long line or polygon objects like waterlines, rivers, parcels etc.

Users may click and drag the ‚N‘ symbol on the rotation control to change current rotation of the map.

User may right mouse click the ‚N‘ symbol for being able to manually enter a specific angle [degrees].

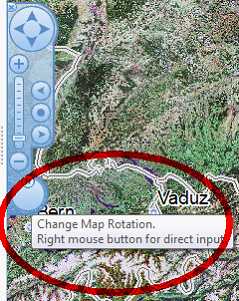

Rotation control - right mouse button for entering rotation value

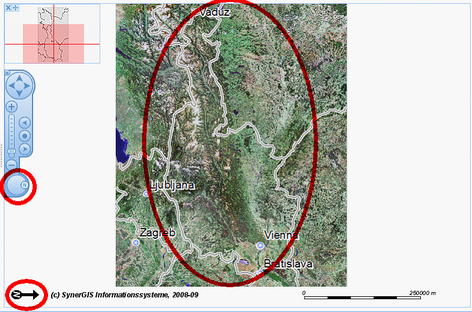

Resulting map with rotated map and north arrow

Active GUI Module

Defines which gui module is displayed initially:

•Table Of Content

•Queries

•Legend

•Layer Filter

Show null values?

Specifies whether null values are to be showed (Yes) in result display or not (No)
