Introduction to WebOffice map widget > Supported Parameters > Tool Parameters > activetools

The parameter activetools=IDENTIFY will display the identify tool.

Note: The parameters query_identify_mw, returnkey_identify_mw and callback_identify_sl are required in order to provide identify functionality in WebOffice map widget.

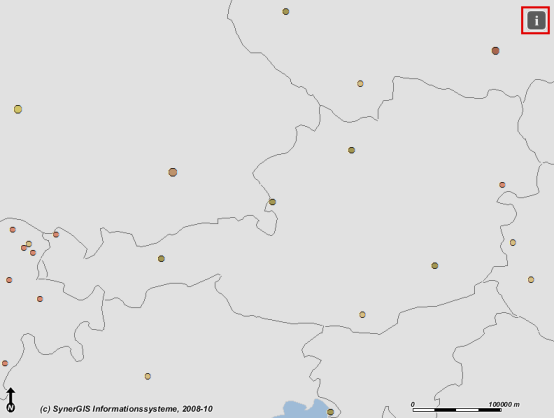

Identify Tool

Note: In order to identify an object in the client, first navigate to a specific object. As soon as the object is highlighted, a small 'OK'-Button will appear. When clicking this button, the result will be displayed in WebOffice map widget.

The pixel tolerance for the identify tool can be configured in WebOffice Defaults.

Example:

http://w-vpc-kr-w7-e:8080/WO_10R3_SP2_latestBuild/client_mapwidget/default.jsp?baseURL=http://w-vpc-kr-w7-e:8080/WO_10R3_SP2_latestBuild&project=WebOffice_SampleProject_Doku&width=600&height=400&view=Edit&maptransparency=1.0&activetools=IDENTIFY&query_identify_mw=othercities&returnkey_identify_mw=CITY_NAME&callback_identify_sl=parent.identifyResult
