SynerGIS URL Integrator Configuration

 Previous pageReturn to chapter overviewNext page

The SynerGIS URL Integrator may be configured using a Hyperlink configuration element. For the setup see WebOffice10R3-DVD\Software\SynerGIS URL Integrator.

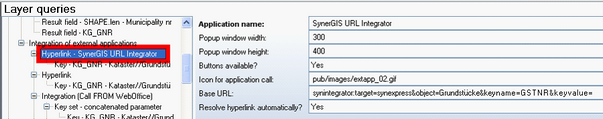

Hyperlink - SynerGIS URL Integrator configuration

Hyperlink - SynerGIS URL Integrator configuration



Advantages of the SynerGIS URL Integrator:

- Works in browsers besides MS Internet Explorer, because no ActiveX is needed

- Configuration via external call



URL:

Note that the resulting browser request for SynerGIS URL Integrator must always look like (the strings in brackets <xxx> will need to be configured properly by the administrator, the string in double brackets <<dynamic>> will be automatically added by WebOffice 10 R3:



synintegrator:source=<synarcgis>&object=<Grundstücke>&Keyname=<GSTNR>&keyvalue=<<dynamic>>



Either the parameter source or the parameter target has to be passed. If both are passed, target will be used, source will be ignored.



The parameter source:

This parameter contains the name of the application from which the data will be sent. The default integrator dialog for choosing a target application/object will be shown.



The parameter target:

Contains the name of the application to which the data will be sent. The target application will be called directly (without integrator dialog).



The parameter object:

This parameter contains the integrator-object to be used. It is mandatory. If source is used, it is the source object, if target is used, it is the target object.



The parameter keyname:

Defines the name of the keyfield. Only needs to be passed if target is used.



The parameter keyvalue:

Contains the key value(s). It is mandatory. If several values are passed, they have to be separated with ';'.



Examples:



A) Integrator Express:
synintegrator:target=synexpress&amp;object=Grundstücke&amp;keyname=GSTNR&amp;keyvalue=

B) Integrator with choice:
synintegrator:source=synarcgis&amp;object=Grundstücke&amp;Keyname=GSTNR&amp;keyvalue=

C) Integrator external application with choice:
synintegrator:source=synarcgis&amp;object=Grundstücke&amp;keyname=GSTNR

D) Integrator external application with Integrator Express:
synintegrator:target=synexpress&amp;object=Grundstücke&amp;keyname=GSTNR



Note: It is recommended to use the Display mode IFRAME and the window type hidden. See chapter Integration of external Applications for detail.
