Print Title |

|
Print Title |
|
Print title configuration
Property |
Description |
Field caption |
Caption in print template. Standard ratios are applied if there are no language-specific terms are specified. |
Field value |
Value in print template. Note: The print title can be entered in the placeholder Field value, which are replaced automatically by printing with dynamic values. The placeholder will be replaced by the current <project> name, while the placeholder <view> is replaced by the name of the map. |
ID of field caption |
The ID for this predefined function field is always title_caption. |
ID of field value |
The ID for this predefined function field is always title_value. |
User may change? |
Specifies whether the user my change or set the value in the print tool form ("Yes") or not ("No"). |
Append project to title? |
Specifies whether the name of the project shall be appended (separated by a dash) to the defined title. Note: The project name refers to the placeholder <projekt>. |
Append mapview to title? |
Specifies whether the name of the mapview shall be appended (separated by a dash) to the defined title. Note: The mapview refers to the placeholder <view>. |

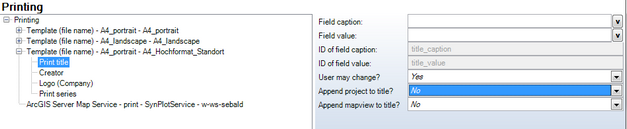

Print title configuration
Note: The Print title is set to "User may change? Yes" by default, therefore the Print title appears by default in the Print tool form.

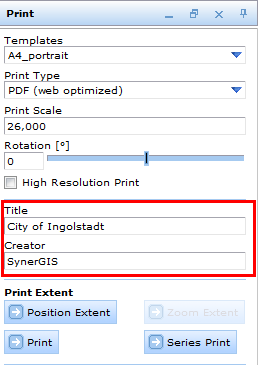

Print title value ‘Plot’ - can be set/changed by the user in WebOffice 10 R3 client

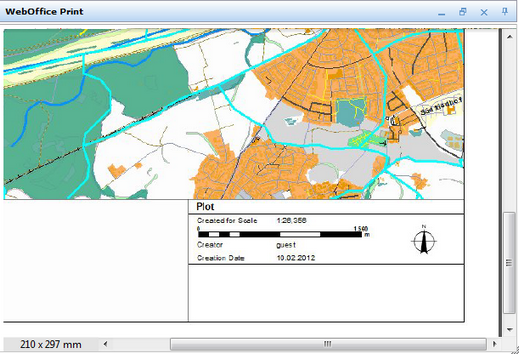

Print title value ‘Plot’ in final print output document
Note: Placeholder can be defined either in the print configuration "Field value", or by applying the field "Append project to title?", but also in "Append mapview to title?"

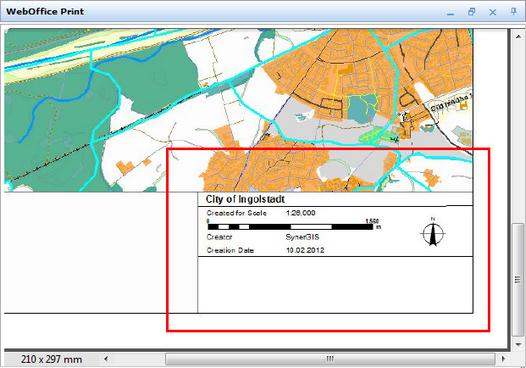

Print titel value with project name
