Neighbour search |

|
Neighbour search |
|
Using the Neighbor search functionality it is possible for users to quickly and easily get neighboring objects or near objects based on a selection of given objects. Result of Neighbor search is an object list ordered by distance. In the search result a column named Distance gets added. This additional column is available in .csv (Excel) export as well.
This function is similar to the Buffer tool function (see Buffer) but easier to use.

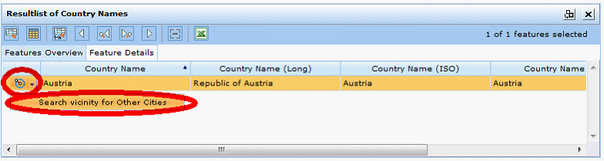

Neighbor search function - drop down menu for choosing the target layer

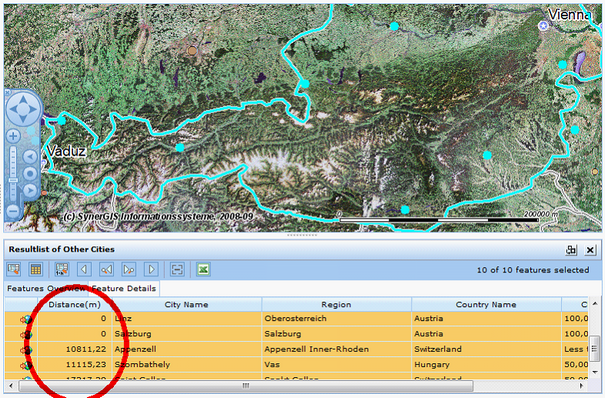

Neighbor search result with column Distance
In WebOffice author behavior of the neighbor search function can be controlled.

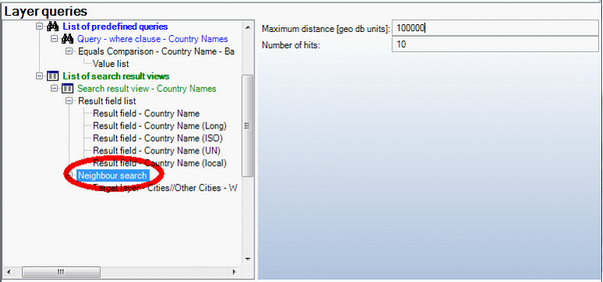

Neighbor search configuration in Layer - Query - Query result
Property |
Description |
Maximum distance [geo db units] |
Maximum distance [geo db units].
If only objects within or adjacent to the selected object should get returned, then use 0 as configuration value.
Hint: For walking distances a value of 200 (meters) is recommended because it takes 1-2 minutes for this distance. If driving distances are interesting then e.g. 10000 is a useful value. |
Number of hits |
Number of hits. WebOffice stops searching if the configured number of hits have already been found. |
Neighbor search configuration

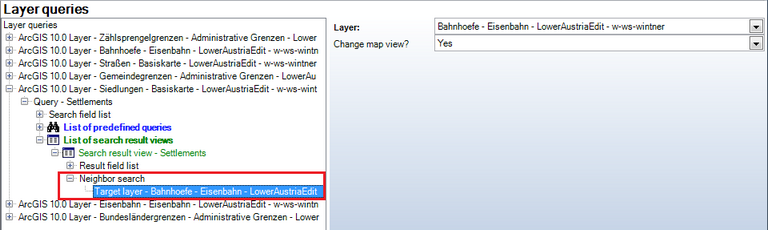

Neighbor search - target layer
Property |
Description |
Layer |
List of Target Layers for specifying the contents of the drop down menu of the Neighbor search function in WebOffice client.
Note: You may only configure searchable/selectable Layers as target layers. |
Change map view? |
Specifies whether the map view referenced by the neighbor search result layer should be used for displaying the results ("Yes") or not ("No"). Note: WebOffice mobile client currently does not allow multiple feature selection. Therefore, the map view will change only with the selection of a single search result of the neighbor search. |
Neighbor search - target layer configuration
