Markup Style |

|
Markup Style |
|
It is also possible to configure different Markup styles for the Markup tool. If there is more than one style configured, the user can select one of them, but isn't able to adapt it again in the markup tool dialog.
Note: Markup styles are also important for measuring in the WebOffice mobile client. This is the only way a user in the WebOffice mobile client can change the appearance of text and measure properties.
Markup tool styles - WebOffice category
Property |
Description |
Style name |
Style name displayed in style selection. |
Markup text length |
Maximum Markup text length. |
Font |
Font for Markup text. |
Font style |
Font style for Markup text. |
Text size |
Default text size (font size). |
Text color |
Color of Markup text. |
Use text background color? |
Use text background color as default (Yes) or not (No). |
Text background color |
Text background color. |
Outline color |
Outline color of text background box. |
Line width / point size |
Line width respectively point size in pixels. |
Shape color |
Color of point/line/area freehand shape. |
Fill color |
Fill color of area shape. |
Transparency level of fill color |
Transparency level of fill color [0..100%]. |
Measure use background color? |
Use text background color for display of measured values (Yes/No) |

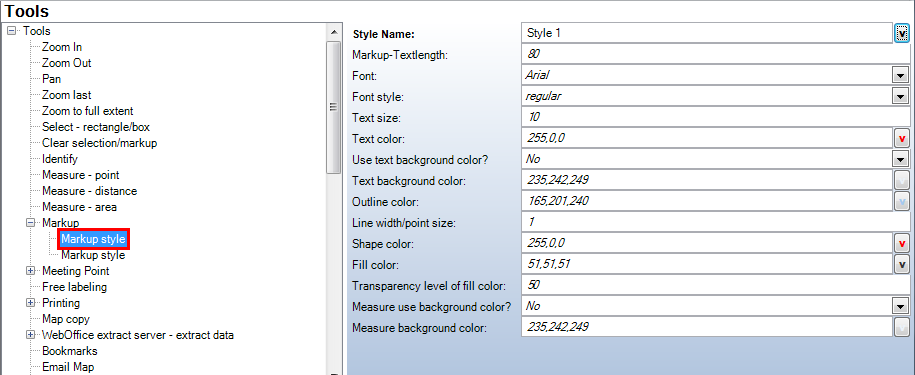

Markup tool styles - WebOffice category

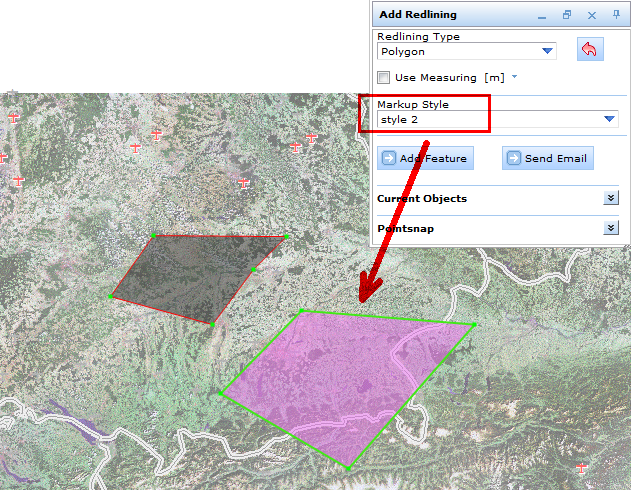

Style selection in Markup tool dialog - WebOffice 10 R3 html client
