Map View |

|
Map View |
|

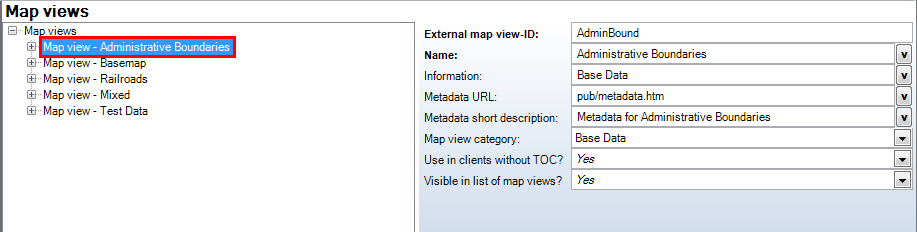

Map View - WebOffice Category
Property |
Description |
External map view-ID |
Map view ID used in parameterized calls of WebOffice 10 R3 Hinweis: This ID should not be changed after the primary creation because it needs to be modified manually in the WebOffice usermanagement database. More information regarding editing IDs you can find in UserManagement - Modify Map View. |
Name |
Name of the Map view displayed in the WebOffice Client. |
Information |
Information for them map view in WebOffice mobile client client (only tablet mode). |
Metadata URL |
Configure a reference to a metadata document (must be available via HTTP) as URL. You may configure the unique Metadata document identifier (UUID) of a Catalog Service (CSW 2.0) here. For this you must configure the SOAP interface of the Catalog Services using Metadata display. |
Metadata short description |
Metadata short description shown as Tooltip. |
Map view category |
Display group for map view. Map view categories are defined in the List of Map View Categories |
Use in clients without TOC? |
Specifies whether this map view shall be used in clients which have no table of content (TOC). For the HTML client the visibilty of the TOC can be specified, the Mobile client and the Flex client do not have a TOC. |
Visible in list of map views? |
Specifies whether this map view shall be shown in the list of map views. This allows defining map views that can be used for search queryes and external calls but cannot be chosen manually. Note: If a map view is hidden no legends or meta data will be displayed for this map view. |
Map view - WebOffice category
Within a Map view it is possible to configure properties of elements the same way as in chapter Table of Content (TOC of Map Collection)
•Map service (also for WMTS) - see chapter Reference to Map Service of Map Collection
•WMS map service - see chapter Reference to WMS Map Service of Map Collection
•Layer group - see chapter Layer Group
•Layer level - see chapter Layer
The configuring of alias names or metadata on layers is not supported in the Map views menu. If you want to provide these information of layers only available in certain map views, the layers have to be configured in the TOC of Map collection and set to hide or off.
Note that you can’t change the display order of Layer groups or Layers by configuring a WebOffice 10 R3 map view structure different to the ArcMap Table of content.
It is important to understand that when changing the Map view in the client, only the differences between the Map views will get displayed. This way it is not necessary to configure a Map view in detail. This rule only takes effect on layers, conceiving map services, every map service has to be in the Map view explicitly.
Example: Map view 1 has two map services (map service 1 and map service 2). In map view 1, map service 1 only the layers A and B are visible. Map view 2 should contain map service 1 and map service 2.
On map service 1 the layers A, B and C should be visible. For this constellation in map view 2, map service 1 only layer C has to be configured visible explicitly. Map service 2 has to be part of the map view to be displayed.
