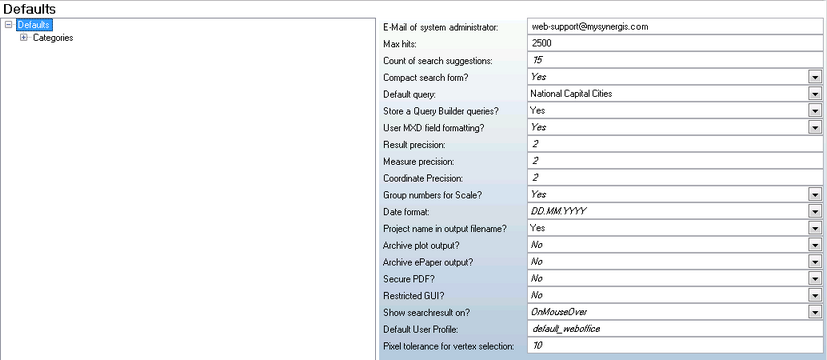

Common Settings

Property

Description

E-Mail of system administrator

User can send an email with a problem or handling question to the system administrator.

A mail to link is displayed by WebOffice 10 R3 client if either an error occurs or if the user looks into the Online help. On the bottom of the help document a mail to link is available. This way the user can give feedback.

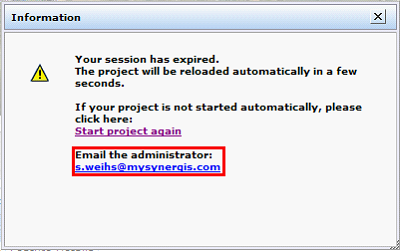

E-Mail of system administrator shown in WebOffice 10 R3 client

Max hits

Set maximum count of hits shown in Search result and in map display.

If a user does a search which exceeds this limit then a notification and no search results are displayed.

Too many objects found notification of WebOffice 10 R3 client

Count of search suggestions

Specifies the count of values returned by WebOffice.

The sorting is carried out in such a way, that the values with the search-expression/condition are arranged before those values, in which the search-expression/condition includes the actual queried/searched expression.

The use of this option is recommended for WebOffice mobile projects but not within a hierarchical search.

Tip: The suggestion count limitation will only be used if 'Merge search fields?' in Query - where clause is set to 'Yes'. Therefor check the corresponding layer configuration!

Caution: WebOffice may not display all values but only so many as configured.

Compact search form?

Control the layout of the Search form in the WebOffice 10 R3 client.

See Figures for impact on the WebOffice 10 R3 client layout.

Search form at start visible?

Specifies whether having the search form at start visible ("Yes") or hidden ("No").

Note: This parameter is WebOffice flex client specific.

Default query

Optionally specify the Default query to use. This query is automatically selected during startup of the WebOffice 10 R3 client.

Store a Query Builder queries?

Enables storing of Query Builder queries for users (‘Yes’).

User MXD field formatting?

Specifies if the field formatting specfied in Field properties dialog of ArcMap gets used. If 'No' then 'Result precision' is used for numeric fields, 'Date format' is used for date fields.

Note: Field precisions from feature classes from a personal geodatabase (PGDB) are not readable.

Result precision

Specify global formatting for numeric floating values (Data type double).

Defines count of after-comma digits get used for display of floating point values.

Measure precision

Specifies how many digits after the comma should be used for display of measured values.

Coordinate precision

Specifies how many digits after the comma should be used for displaying the map coordinates.

Group numbers for Scale?

Either groups the numbers for scale ("Yes") or not ("No"). This affects all the forms where scales can be chosen, e.g. the print form.

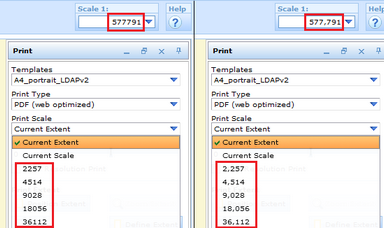

Group Numbers for Scale - Left "No", Right "Yes"

Date format

Specify global formatting for date format values.

Specifies the date format for fields of type date.

Project name in output filename?

Specifies whether to use the Project name as part of the output filename when e.g. generating csv (comma separated values) files.

Archive plot output?

Specifies whether print output is archived (as .pdf document) or not.

Documents get archived in the folder WEB-INF\work\archive in the web application.

The document name contains creation time stamp and user name:

YYYYMMDD_HHMMSS_USER.pdf.

Special characters get replaced with '_'-

Note: The archiving function does not do deletion or clean up for limiting the count of archived documents in the archiving folder.

Archive ePaper output

Specifies whether ePaper output is archived or not. Documents get archived in the according format (.pdf, .xlsx, etc.) in the web application under WEB-INF\work\archive.

The document name consists out of the creation time and user:  YYYYMMDD_HHMMSS_USER.pdf (.pdf, etc). Special characters will be replaced by "_".

Note: The archive function does not provide a delete or clean up function to limit the number of documents in the archive directory.

Secure PDF?

Specifies whether to secure (write protect) and encrypt PDF print output. This way Adobe PDF documents can not be manipulated / changed by the user (using Adobe tools for writing / changing PDFs it is not possible to change the document any more).

Note: Configure a custom password to secure PDFs. See chapter PDF Password for details.

Restricted GUI?

Restricts the possibilities for the user to change the WebOffice 10 R3 GUI, by hiding the menus for docking/floating different user interface modules?

Show searchresult on?

Defines if a minimized searchresult should be maximized on hovering the title bar (OnMouseOver) or on mouseclick (OnClick).

Default User Profile

If a profile with the given name exists and if WebOffice 10 R3 is called without 'userprofile' parameter, then this profile is to be used. If the user already defined his own profile via UserManagement (local or on the server), then this custom profile is taken into account instead of any default profile.

Pixel tolerance for Vertex selection

Pixel tolerance for vertex selection specifies the distance in pixels within a vertex of the currently edited object can be selected.
