Navigation:  Introduction to WebOffice html Client > Queries/Search Functionality

The WebOffice 10 R3 client by default provides a Query stack in the stack group on the left of the WebOffice 10 R3 client window.



There are two different layouts available for the Predefined queries:

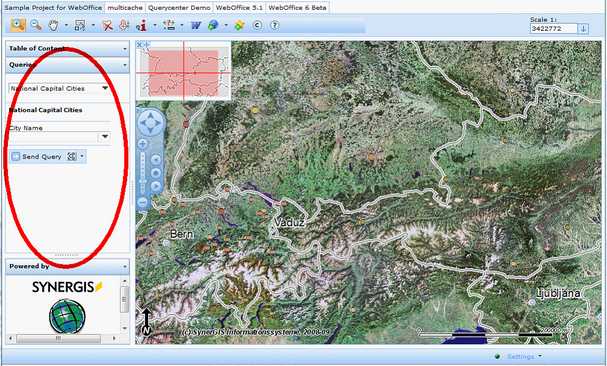

Compact search form (dropdown box with list of queries):

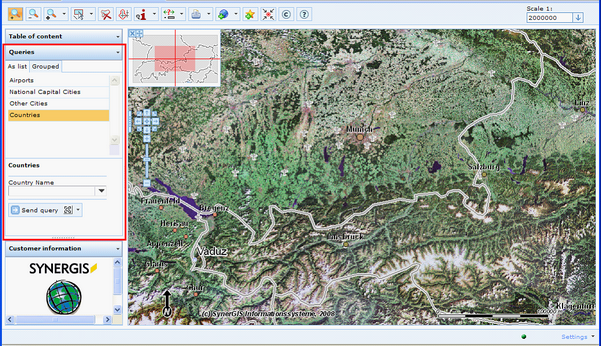

Grouped (by Layer) List of queries:

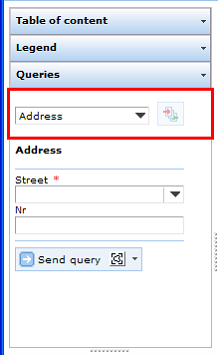

On top of the Query stack the list of Predefined Queries gets displayed. The user can easily change between different Predefined Queries by changing the selected value in the Queries list box:

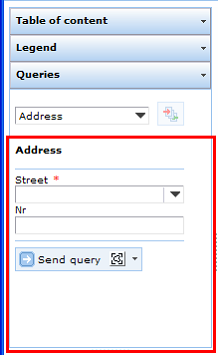

In the lower part of the Query stack the Predefined query itself gets displayed:

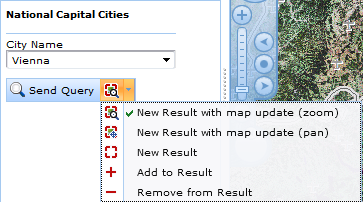

In WebOffice html client you can choose out of 5 different search modes when actually performing the query:



•New Result with map update (zoom): WebOffice 10 R3 creates a new selection based on the results of the Query, displays the results in the result page, zooms to the objects in the map.

•New Result with map update (pan): WebOffice 10 R3 creates a new selection based on the results of the Query, displays the results in the result page and pans to the objects in the map without changing the scale.

•New Result: WebOffice 10 R3 creates a new selection based on the results of the Query and displays the results in the result page. The objects do not get highlighted in the map.

•Add to Result: WebOffice 10 R3 adds the results of the current Query to already existing results from this layer.

•Remove from Result: WebOffice 10 R3 removes the results of the current Query from already existing results of this layer.



Note: Adding to and removing from the current selection is a very powerful function to relate multiple selections and/or queries performed subsequently.
