Navigation:  Introduction to WebOffice html Client > Search Result

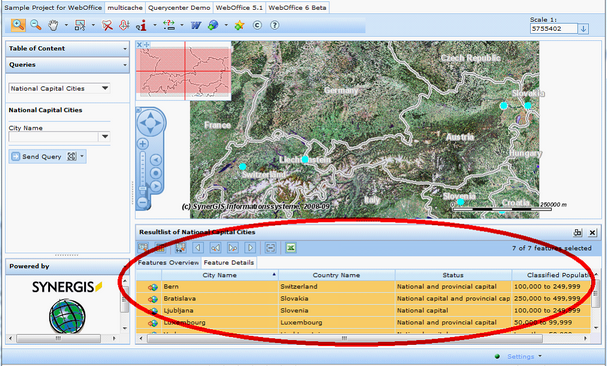

The Search Result Window is hidden by default. It is expanded with every search result and by default gets displayed below the map.



The Search result provides a lot of functionalities to make handling of your current selection easy and efficient: Similar to desktop applications



•Context menu functionalities (right mouse button) are available (navigate to object(s), print object etc.),

•Click operations on columns are possible (sort Search result based on specific column),

•Additional button elements on the left of each of the Search result rows enable the user to pass parameterized calls to other web applications and/or browse into related tables etc. (relate function).





•The title of the Search result window is dynamically set and gets configured in the WebOffice 10 R3 project.

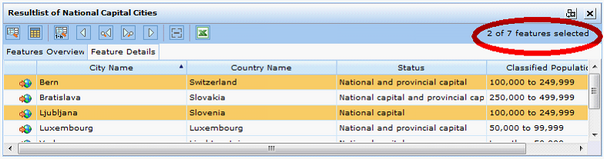

•On the right hand side of the Search result toolbar the overall count of objects available in the current Search result as well as the count of currently selected objects gets displayed





•The user may select one, some or all rows displayed in the Search result. Each row represents one found object.



Note: Keep the ‘Ctrl’ key pressed when clicking on different rows for selecting some of the rows. You can define any selection set in this way.



•Change the sort order in the Search result display by simply clicking on any of the listed columns. Click the column again for toggling sort order.

•Change the order of the fields displayed in the Search result by clicking on a column and dragging it wherever you want to place it. This way you can e.g. move a specific column to the left most. This is useful if this column is the most interesting in your current analysis.

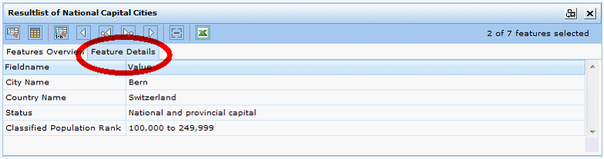

•Select one row and click on Feature details to see the details of this object

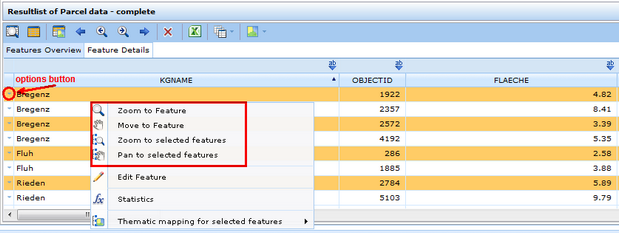

•Use the context menu (right mouse button) or options button (for one row only) for navigating to the selected objects.

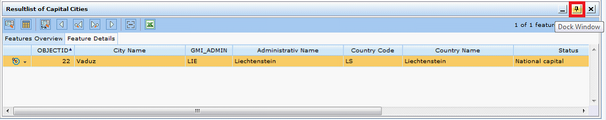

Users may change the Search result window from floating (default) to docked. The floating Search result is placed at the bottom of the window but has no effect on the map size.

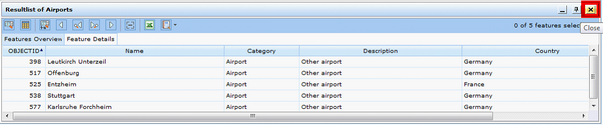

The Search result can be closed:





The floating Search result can be

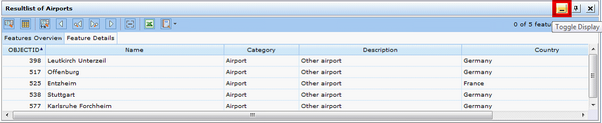

•Minimized (Toggle Display Button or task bar)





•Maximized

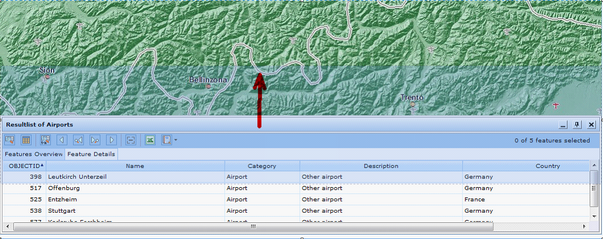

•Resized (drag the task bar)
