Display Mode

Previous pageReturn to chapter overviewNext page

It is possible to specify the Display Mode that will be used to open the metadata.



The Display Mode can be configured separately for:

Map Views

Layers

Layer-Groups

Project

and WMS-Legend

Note: Please note that these settings are only considered in the WebOffice core client. In WebOffice flex client, the metadata is always displayed in the download container, regardless of this configuration option.



For every metadata source you can choose between the following display modes:

Display mode IFrame: External web pages then get embedded in a WebOffice 10.8 SP2 client window. It does not matter whether a pop up blocker is active or not.

Display mode pop up: External web pages will be opened in a browser pop up window. Pop ups must then be allowed for WebOffice 10.8 SP2 client web page in order to correctly display contents of the integrated web page. You may use this option if e.g. the layout of the integrated web page does not fit to WebOffice 10.8 SP2 client.



Note: The way how a browser pop up opens (i.e. in a new window or in a new tab) depends on browser settings and / or security settings of the website to be opened.



Display Mode IFrame

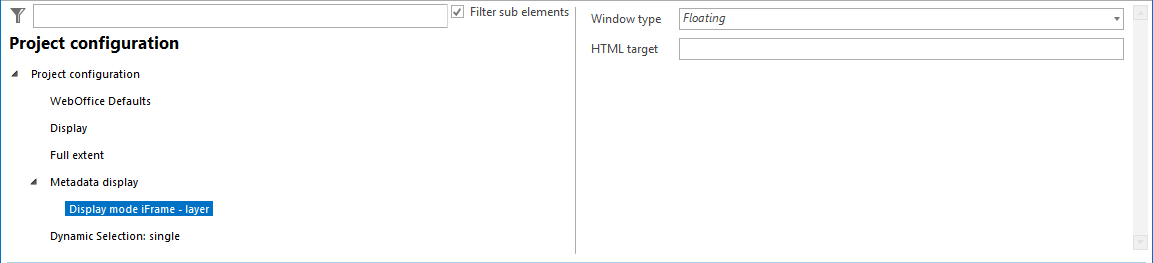

Display mode IFrame configuration

Display mode IFrame configuration



Property

Description

Window type

The window type attribute enables you to control the way the external web page is displayed. You may choose either

top left

bottom left

top right

bottom right

Note: In WebOffice core client these four types are always docked in the Project Center.

floating

Hidden (the content of the integrated web page will not be displayed at all in the WebOffice 10.8 SP2 client)

Note: Use this option for VertiGIS URL Integrator calls.

HTML target

Specifies the HTML target to be used. This is useful for accelerating calls (especially repeated calls) to other applications and for controlling in which window a specific web application gets (re)opened.

Note: For example, use the HTML target "to_weboffice" if you want to replace the WebOffice 10.8 SP2 client with the external application / hyperlink.

Note: If no value is specified the given name in the configuration of the coupled application is used as identifier.

Display mode IFrame properties



Note: Please consider, that floating is the only relevant window type for the WebOffice core client. If you choose any other option for the window type, your IFrame window will be integrated within the project center on the left side of the WebOffice core client.



Display Mode Pop Up

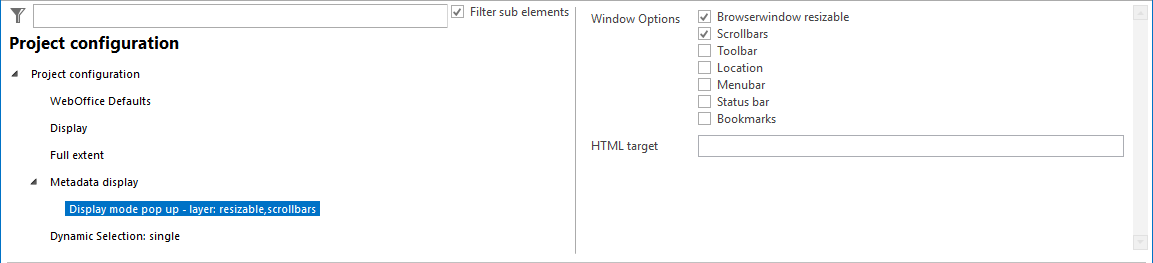

Display mode pop up configuration

Display mode pop up configuration



Property

Description

Window Options

Defines the options (GUI elements) for the popup window.

Press the arrow symbol on the right hand side of the input field to get a list of options to choose from.



Window options

Window options



HTML target

Specifies the HTML target to be used. This is useful for accelerating calls (especially repeated calls) to other applications and for controlling in which window a specific web application gets (re)opened.

With this attribute, it is possible to alternately display various coupled applications in a single browser window or display each application in a single window, so that a number of various application windows are displayed at the same time.

Note: For example, use the HTML target "to_weboffice" if you want to replace the WebOffice 10.8 SP2 client with the external application/hyperlink.

Note: If no value is specified, the given name in the configuration of the coupled application is used as identifier.

Display mode pop up properties
