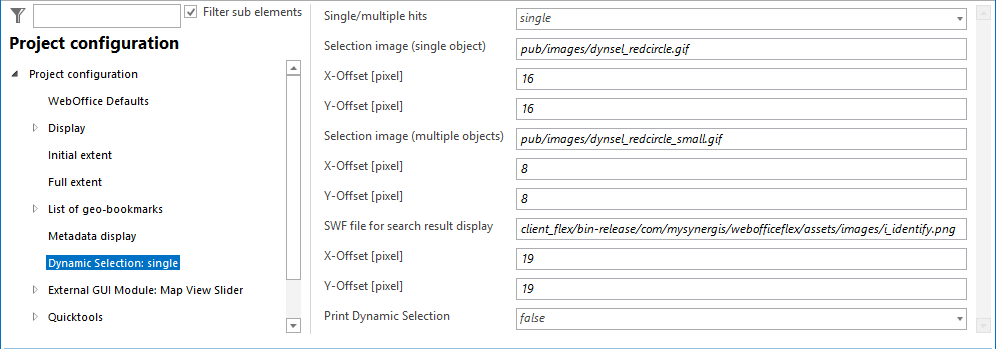

Dynamic Selection

Property

Description

Single/multiple hits

Specifies if the dynamic selection will be used for

•Single objects only (single)

•Single and multiple objects (single + multiple)

Selection image (single object)

URL referencing the image file used for dynamic selection display (Default is pub/images/dynsel_redcircle.gif).

X-Offset [Pixel]

X-Offset [Pixel] for insert point of the graphic symbol.

Y-Offset [Pixel]

Y-Offset [Pixel] for insert point of the graphic symbol.

Selection image (multiple objects)

URL referencing the image file used for dynamic selection display (Default is pub/images/dynsel_redcircle_small.gif).

X-Offset [Pixel]

X-Offset [Pixel] for insert point of the graphic symbol.

Y-Offset [Pixel]

Y-Offset [Pixel] for insert point of the graphic symbol.

SWF file for search result display

SWF file for search result display in WebOffice flex (flash) Client.

Note: This is a WebOffice flex (flash) specific parameter.

X-Offset [Pixel]

X-Offset [Pixel] for insert point of the graphic symbol.

Note: This is a WebOffice flex (flash) specific parameter.

Y-Offset [Pixel]

Y-Offset [Pixel] for insert point of the graphic symbol.

Note: This is a WebOffice flex (flash) specific parameter.

Print Dynamic Selection

Include dynamic selection images in the print output.

Note: For technical reasons the following order in the print output is mandatory:

- ArcMap selection (on top)

- markup graphics (dynamic selection symbols, measure graphics)

- map

Note: VertiGIS does not recommend the use of dynamic selection symbols in prints together with large selections because it will substantially increase the necessary time to create a print output.

Note: WebOffice 10.8 SP2 does not support the print of *.sfw files.
