Raster Choice with Territorial Validity FC

Previous pageReturn to chapter overviewNext page

The configuration element raster choice with territorial validity FC provides the possibility to choose and display specific raster images based on a raster catalog including the specification of a territorial validity via a Feature Class in WebOffice 10.8 SP2. It is possible to visualize a polygon (via a polygon feature class) for every raster image. The territorial validity is defined through a polygon feature class which is connected via a reference key with the images of the raster catalog.



Note: The requirement for this function is that the superior layer has to be of type polygon feature class. Additionally the territorial validity polygon feature class and the raster catalog have to include a data field (reference key), which links the polygon feature class with the raster catalogue. If the requirements aren't fulfilled, the configuration element will be ignored.

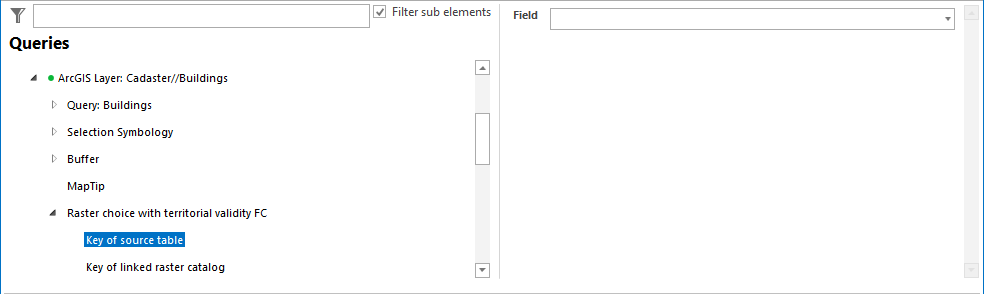

Configuration - Raster Choice with territorial validity FC

Configuration - Raster Choice with territorial validity FC



Property

Description

Key of source table

Specifies the reference key of the source table, which consists of the unique name or ID of the raster images.

Properties of the Raster Plan Choice with territorial validity FC

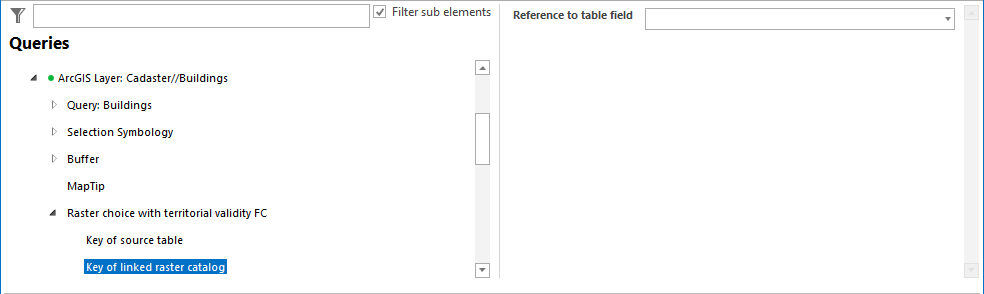

Configuration - Raster Choice with territorial validity FC

Configuration - Raster Choice with territorial validity FC



Property

Description

Key of linked raster catalog

Specifies the reference key of the linked raster catalog, which consists of a unique name or ID of the raster images.

Properties of the Raster Plan Choice with territorial validity FC



Note: See chapter Raster Choice for details about the tool configuration of Raster Choice in WebOffice author standalone.

Note: See chapter Raster Choice for details about the raster choice functionality in the WebOffice mobile client.
