Predefined Net Traces

With the Predefined Net Traces the respective network-IDs and options for net trace (definition of start features, barriers and results) are configured. If more than one net trace is specified, the WebOffice 10.9 SP1 client will provide a value list dialog.



icon_comment

In order to display net trace results, the resulting layers must have a respective search configuration configured.

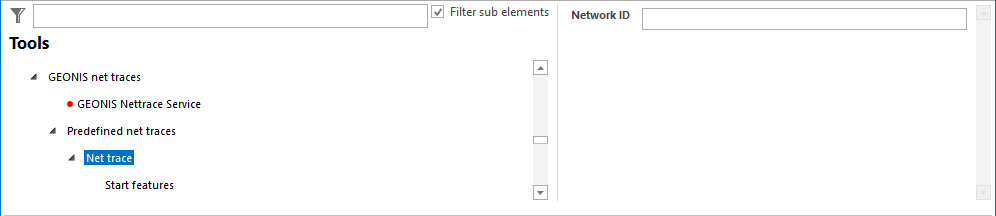

GEONIS net trace configuration

GEONIS net trace configuration



Property

Description

Network-ID

Specifies the unique network ID (networkid).

icon_comment

Open the GEONIS net tracer service URL in the browser to get the network ID.

GEONIS net trace properties

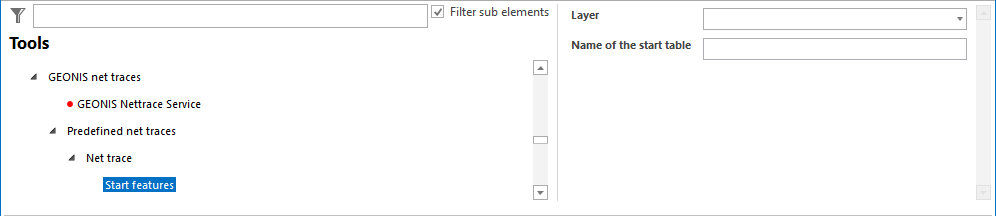

GEONIS net trace start feature configuration

GEONIS net trace start feature configuration



Property

Description

Layer

Specifies the layer ID of the start features in the net trace, in order to assign them to a map service layer.

Name of the start table

Specifies the name of the start table (tableName) that is used in the service request of the GEONIS server (Example: ele_station)

icon_comment

Open the GEONIS net tracer service URL in the browser to get the name of the start table.

GEONIS net trace start feature properties

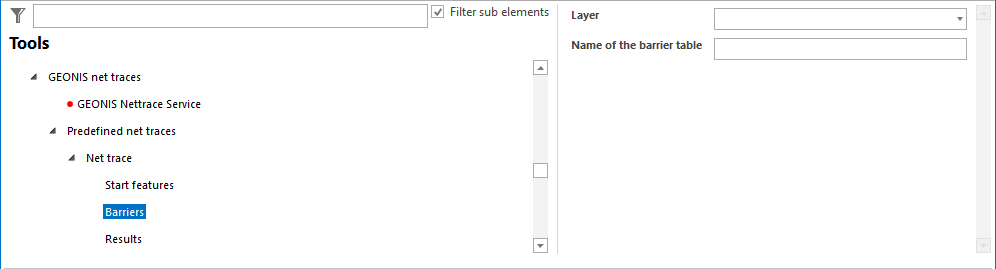

GEONIS net trace barriers configuration

GEONIS net trace barriers configuration



Property

Description

Layer

Specifies the layer ID of the barriers in the net trace, in order to assign them to a map service layer.

Name of the barriers table

Specifies the name of the barriers table (tableName) that is used in the service request of the GEONIS server (Example: ele_station)

icon_comment

Open the GEONIS net tracer service URL in the browser to get the name of the barriers table.

GEONIS net trace barriers properties

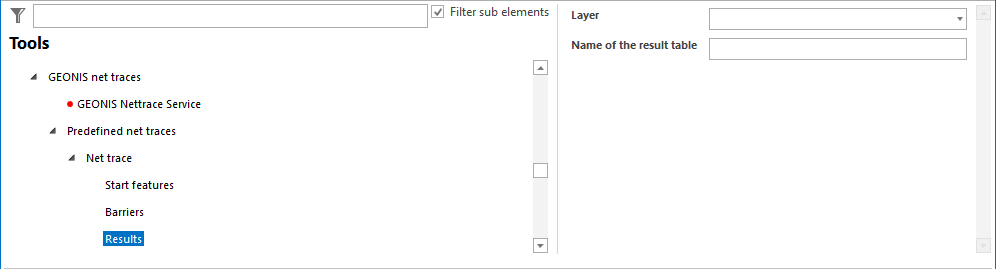

GEONIS net trace results configuration

GEONIS net trace results configuration



Property

Description

Layer

Specifies the layer ID of the results in the net trace, in order to assign them to a map service layer.

Name of the result table

Specifies the name of the barriers table (tableName) that is used in the service request of the GEONIS server (Example: ele_station)

icon_comment

Open the GEONIS net tracer service URL in the browser to get the name of the results table.

GEONIS net trace results properties



icon_comment

Several result layers can be added.

icon_cross-reference

Find more details for GEONIS parameters in the GEONIS user manual.

See chapter GEONIS Nettrace Service for details about the configuration of a nettrace service.

See chapter Predefined Net Traces for details about the configuration of predefined net trace options.

See chapter GEONIS Netzverfolgung for details about the usage of GEONIS net trace in the WebOffice core client.
