GEONIS Nettrace Service

Define a GEONIS Nettrace Service that will be used for network tracking.

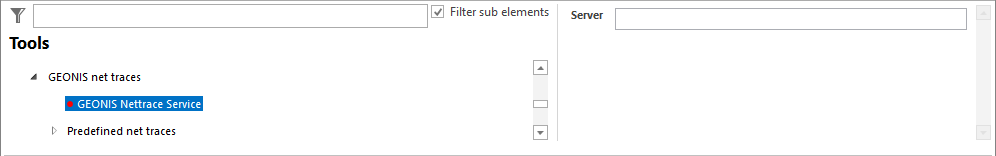

GEONIS nettrace service configuration

GEONIS nettrace service configuration



Property

Description

GEONIS Nettrace Service

Specifies URL of an ArcGIS Server service for net trace.

Example:

https://<myserver>/arcgis/rest/services/GEONISserverSOE2021/MapServer/exts/GEONISserver2022/nettrace/GetNetTrace?project=<project>&datasource=<datasource>&f=pjson

icon_warning

ACHTUNG!

GEONIS Server 2022 is required to support the new GEONIS Nettrace Service URL nomenclature.

icon_comment

The following three parameters are required in the address structure:

•project=

•datasource=

•f=

GEONIS nettrace service properties



icon_cross-reference

•Find more details for GEONIS parameters in the GEONIS user manual.

•See chapter GEONIS Nettrace Service for details about the configuration of a nettrace service.

•See chapter Predefined Net Traces for details about the configuration of predefined net trace options.

•See chapter GEONIS Nettrace for details about the usage of GEONIS net trace in the WebOffice core client.
