The GEONIS Net Trace provides an easy way to execute net traces on a geometric network in the WebOffice core client.



core_Geonis_Net_Trace1

GEONIS Net Trace tool in the WebOffice core client



First select the network that is to be used for net tracing. Depending on the configuration, further options that include the definition of startflags and barriers will be available in the tool dialog. The user may select a startflag or a barrier to be used in the network and place it in the map.



Settings of GEONIS Net Trace in the WebOffice core client

Settings of GEONIS Net Trace in the WebOffice core client



Startflags placed by the user are displayed as green rectangles. Additionally, the respective result object in the map will be marked visibly. The tracing will start from these startflags. Users may also specify barriers that will lead to the end of a net trace. Barriers are displayed as red plus symbols and with the object being marked visibly.

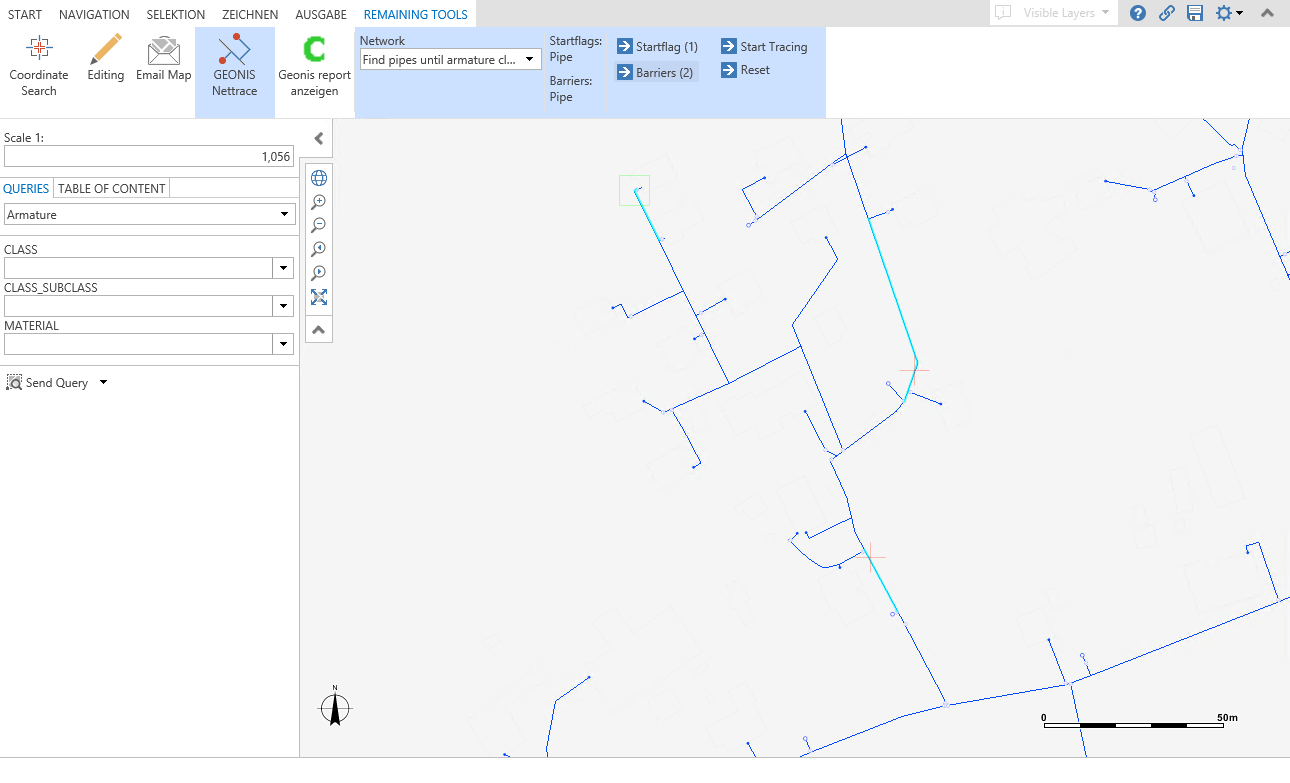

Definition of startflags and barriers inside a GEONIS network

Definition of startflags and barriers inside a GEONIS network



After all startflags and barriers of the net trace have been placed in the map, start tracing by clicking the button Start Tracing. The result will select all found objects and display them in a search result view.

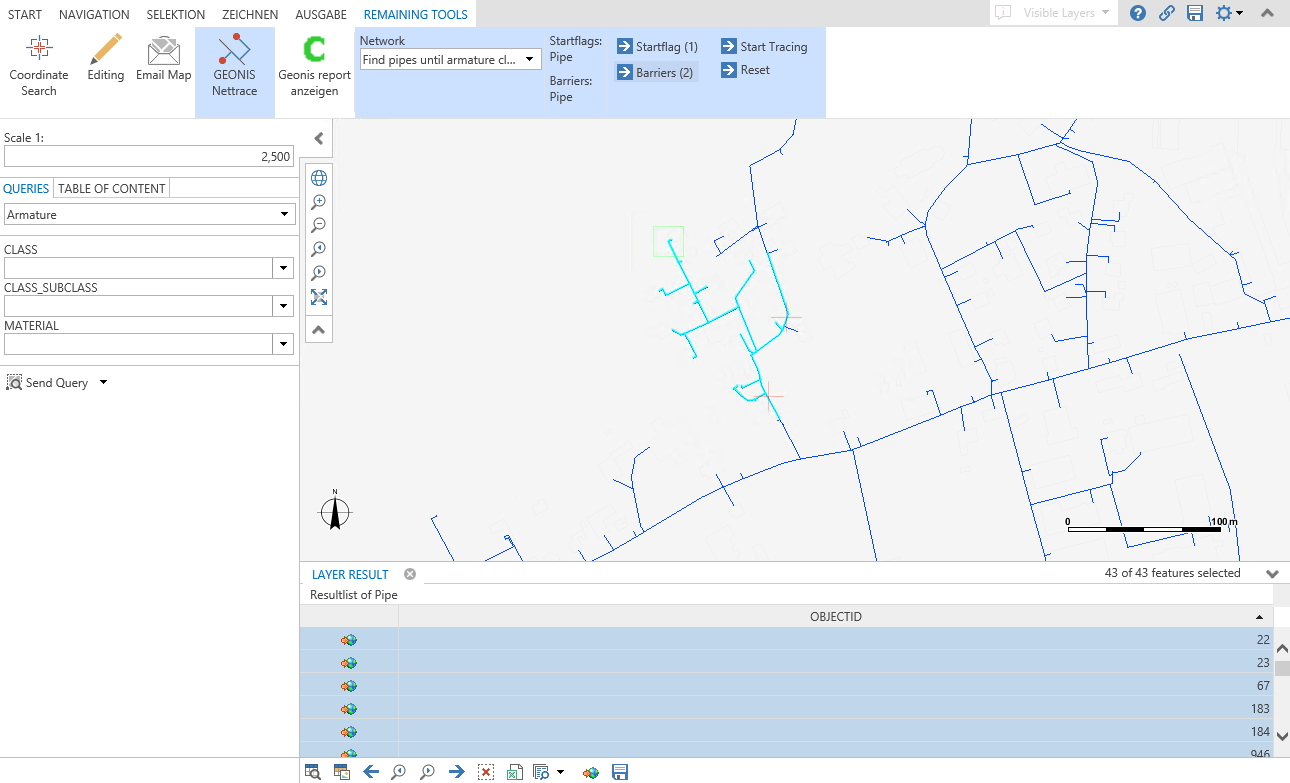

Result of a GEONIS Net Trace in the WebOffice core client

Result of a GEONIS Net Trace in the WebOffice core client



Note: See chapter GEONIS Net Trace and sub chapters for details about the configuration of GEONIS Net Trace in WebOffice 10.9 SP1.

Note: When user transmission from WebOffice to GEONIS form is configured, only the current used group X-syn-group of the current user session will be transferred. An implementation in GEONIS is planned for the release of version 6.1.
