Table (ArcGIS Map Service)

WebOffice 10.9 SP1 also supports the search in ArcGIS tables that have been published within a map service in ArcGIS Enterprise and can be accessed via the corresponding REST URL of the services.



icon_comment

In such tables, which refer to an ArcGIS Map Service, it is currently only possible to search. This means that it is not possible to configure joins or relates in WebOffice author standalone based on this table type.

In order to be able to configure a list of ArcGIS tables (via Map Service), a faultless and complete table referencing in the WebOffice 10.9 SP1 project must be guaranteed.

icon_cross-reference

For more information on the corresponding layer and table assignment, see the chapter Layer validation.

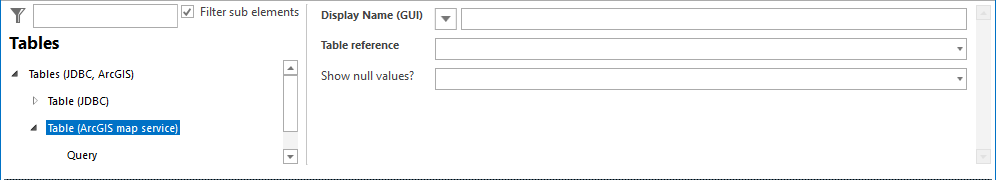

Table configuration (ArcGIS Map Service)

Table configuration (ArcGIS Map Service)



Property

Description

Display Name (GUI)

Table name shown in the GUI.

Table reference

Definition of a table that is accessed via the REST URL of a map service. The corresponding drop-down list lists all tables that refer to a map service included in the WebOffice 10.9 SP1 project.

Show null values?

Show null values in result display?

Table properties (ArcGIS Map Service)



In order to configure all relevant aspects for table search and result display a set of configuration elements should be taken into consideration:



Query: Specify generic query (Query Builder) behavior,

Search Field List: Specify all available search fields. Search fields can be used in either

Query Builder or

Predefined query

List of Predefined Queries: Multiple predefined queries can be configured. This makes the search & find process much easier for the user,

List of Search Result Views: Multiple search results can be configured to provide different views on the data.

icon_cross-reference

See chapter Layer Queries for details.



Table query configuration (ArcGIS Map Service)

Table query configuration (ArcGIS Map Service)



Search field list and search field

Search field list and search field

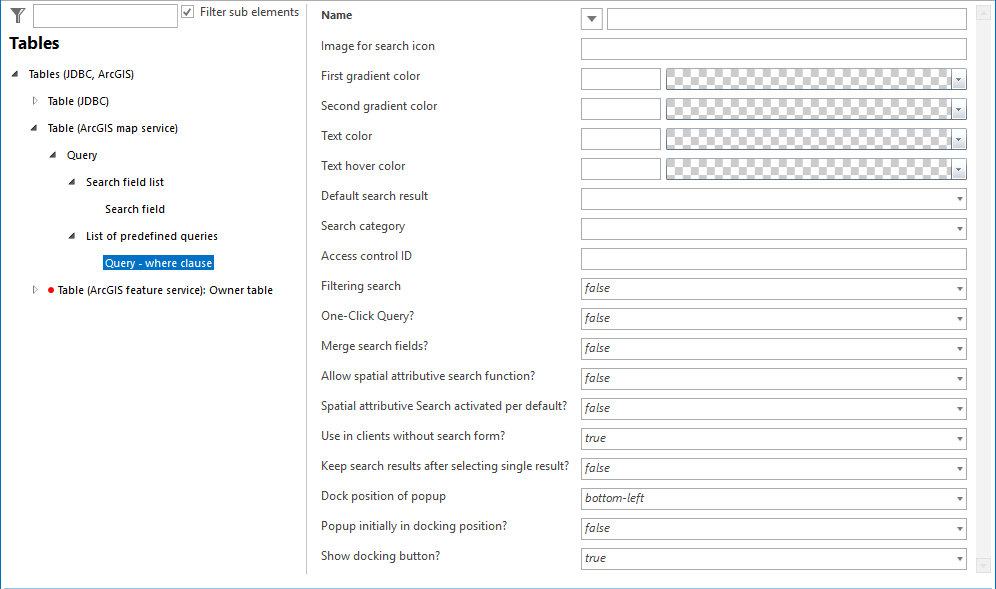

List of predefined queries

List of predefined queries



icon_comment

The parameters Permit spatial attributive search function? and Spatial attributive Search activated per default? currently only work with spatial feature classes, i.e. the above mentioned parameters have no function for attributive table queries.

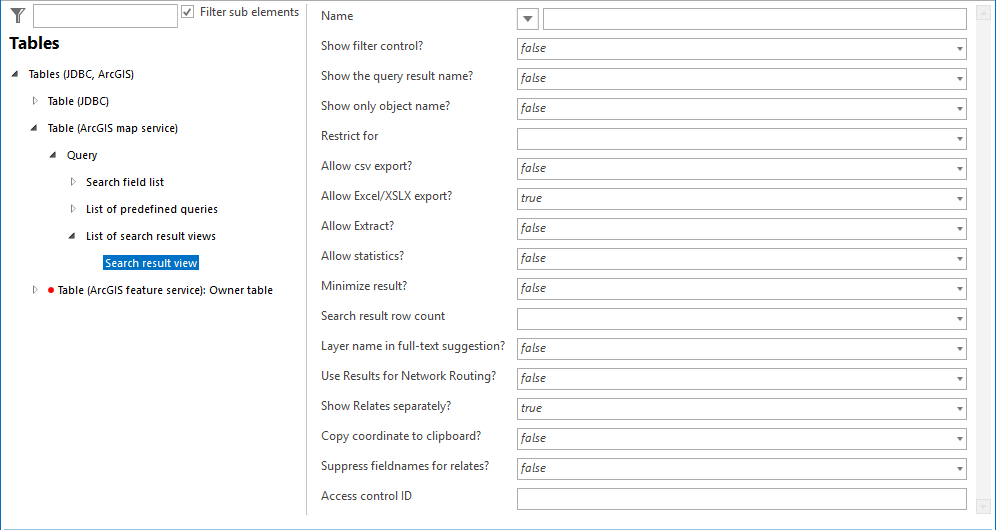

List of search result views

List of search result views
