Configure Legend Settings to control the way the dynamic legend will be created. It is an optional settings and if not configured, default settings are used. If this element is configured in the map elements, it globally controls the creation of dynamic legends. If configured on a specific print template, the settings will only be valid for this specific print template.

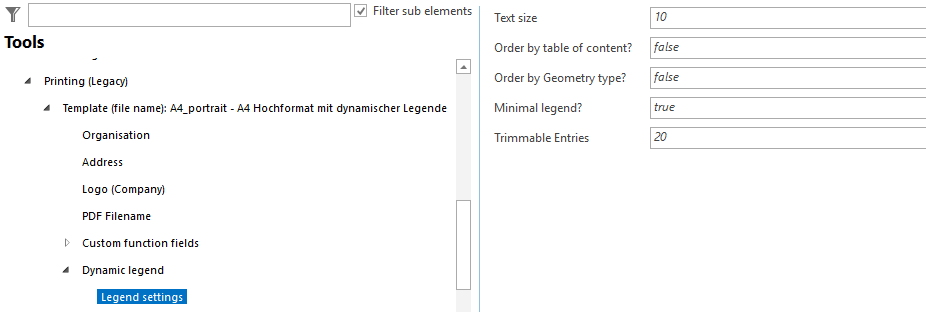

Legend settings configuration for a print template

Legend settings configuration for a print template

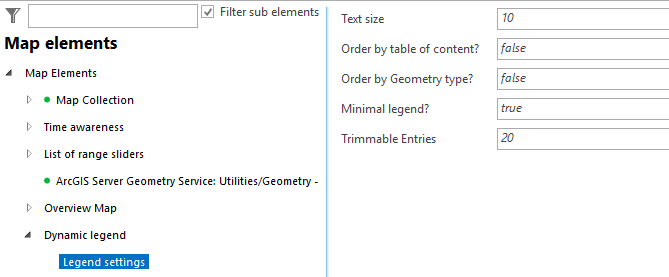

Legend settings configuration in the map elements

Legend settings configuration in the map elements



Property

Description

Text size

Define the font size for the dynamic legend. By default, font size 10 will be used.

Table of content order

Specifies whether to create the dynamic legend using the table of content order (Yes) or not (No).

Geometry type order

Specifies whether to create the dynamic legend using the geometry type order (Yes) or not (No).

Minimal legend

Specifies whether to filter legend classes by actual feature display in the current map. This option may have an impact on print performance.

Trimmable entries

Maximum percentage of legend entries that may be postfixed with ... if the are too long for display.

Legend settings properties



icon_cross-reference

See chapter Dynamic Legend for details about the dynamic legend configuration in WebOffice author standalone.

See chapter VertiGIS Printing for details about the tool configuration in WebOffice author standalone.

See chapter Template (File Name) for details about the configuration of print templates.
