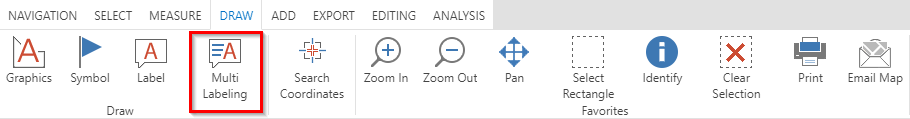

The Multi Labeling tool supports the labeling of line objects with content defined in a search result view (this view must be restricted for the Free Labeling of multiple objects/multifeature labeling.).



Creating a caption

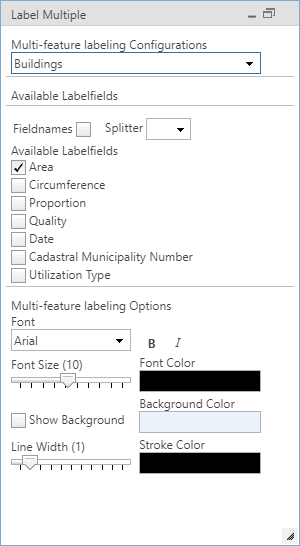

After the Multi Labeling tool is activated, some settings can be made in the dialog of the tool before an object is labeled.





Multi-feature labeling Configurations

The first step is to select the label configuration. All layers on which multiple labeling is configured are listed. If several different result views have been configured, one of them can be selected as the label configuration.



Available Labelfields

The user can select one or more fields to be used for the free labeling (field content, also optionally together with the field name). Additionally the splitter between contents of different fields can be selected (e.g. dot, comma, hyphen, slash or line break). The order of the fields can be changed with the context menu.

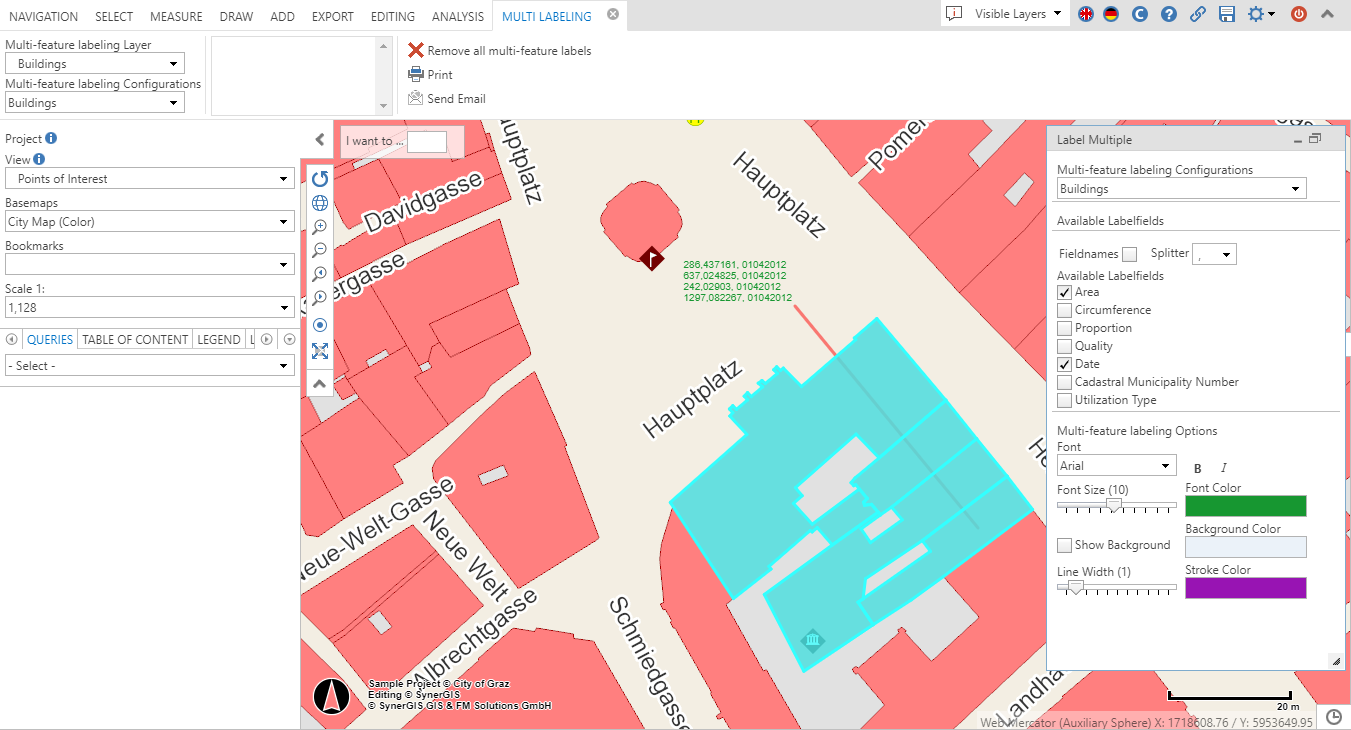

With the Multifeature Labeling tool, it is possible to use free labeling with additional functionalities. The corresponding features can be selected by selecting a line (with two vertices). Thus several objects (of a theme) are selected and labeled with a certain sequence. The first object cut from the drawing direction is written at the top. (The top corresponds to the first click point of the line in this case). A rotation angle (text rotation), which is taken from the first cut feature (the line selection), is also taken into account. The reference line and label text with a base line are displayed.







Mulit-feature labeling Options

In the area Mulit-feature labeling Options, the style of the label can be individually adapted by the user.





By activating the tool Multi Labeling, another tab opens in the ribbon of the WebOffice core Client. In addition to the settings already mentioned for the multi-feature labeling configurations, the available labels can also be inspected or deleted here.

The Print button can also be used to open the Printing (Legacy) tool (if this tool has been configured). The free labeling is integrated into the printout.

If you click on Send Email, your mail program will be opened. You can send a link with a corresponding status ID by e-mail, which will contain all created labels that were created during the browser session.



Deleting labels

There are different ways to delete existing labels:

1.In the list of existing labels, click the x to delete a specific label, or click Remove all multi-feature labels.

2.Click the Clear Selection tool to delete ALL existing redlining objects (selections / measurements / markers).
