Print Selected Features

The function Print Selected Features allows you to create printouts of single or multiple selected features within the WebOffice core client. Prerequisite for this function is the configuration of Print Templates with Attribute Data on the selected layer, which contains the selected features.



There are two different options when printing selected objects:

Print selected features (without print series): In this case the configured print template does not include a Series Print. The user can create a print of one object or several selected objects. All selected features will be displayed and printed on a single page.

Print selected features (with print series): In this case the configured print template contains a Series Print. The user can create a print of one object or several selected objects. This option will create a multipage print output document where every selected feature will be displayed on its own sheet.



Depending on the print template configuration as described above, the available tool buttons may differ.



Symbol

Menu Item

Description

core_Print_Selected_Features2

Print selected features with
<Print template name>

This function is only available for print templates without Series Print. Either click right on selected features or use the drop-down menu in the Search Result Toolbar.

The result will be a single page print document with all selected features on the map.

core_Print_Selected_Features3

Print selected features with
<Print template name>

Only available for print templates with print series. Either click right on selected features or use the drop-down menu in the Search Result Toolbar.

The result will be a multipage print document where every selected feature will be displayed on its own sheet.

Print selected features options



icon_comment

Print templates which are configured From Search Result Only are only available with this option. Otherwise these print templates will not be shown in the Printing (Legacy) tool.



Print selected features (without print series)

To generate a print from selection first select some objects. Either click the Print button in the search result toolbar or open the context menu or with a right mouse click on the selected objects and select in the search result list. For this function Print selected objects with <Name of the print template> is selected from the selection list.

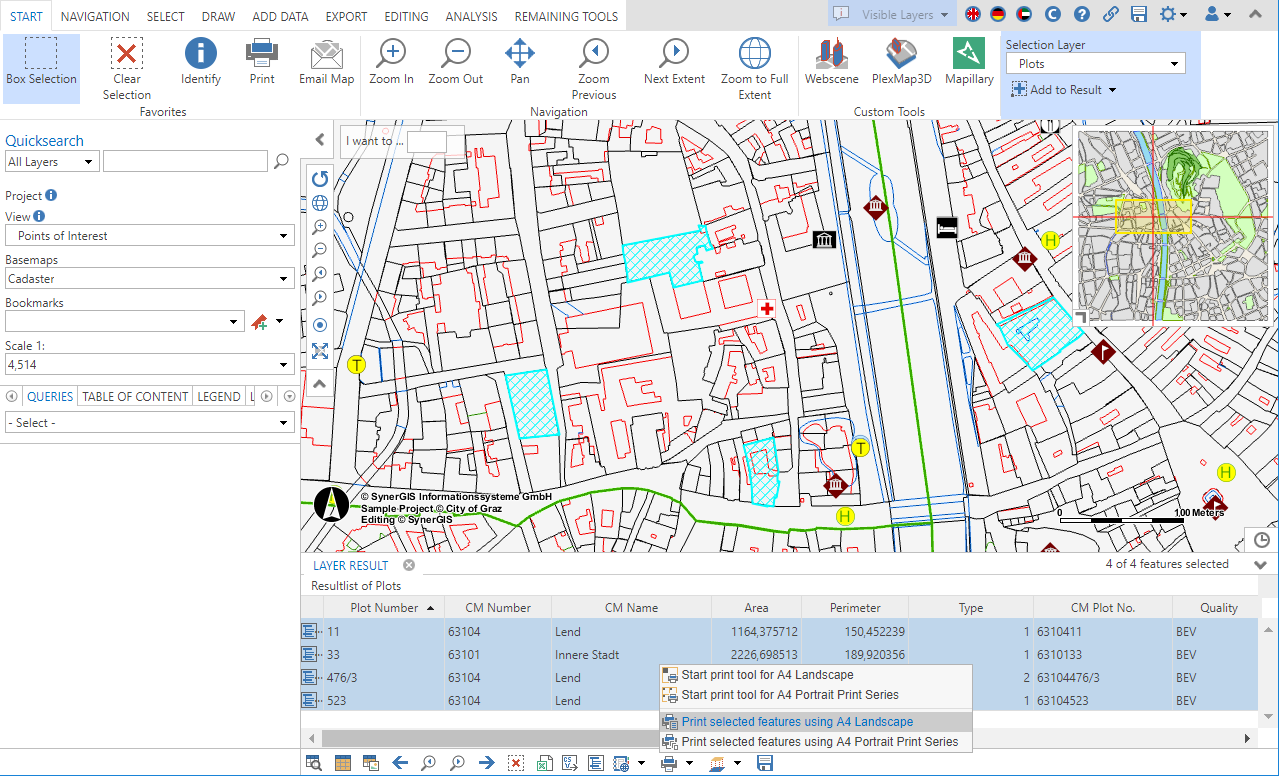

Print without print series from selection

Print without print series from selection



icon_comment

The print scale of the sheets displaying the selected features is defined by the Reference Scale of the WebOffice 10.9 SP1 project.

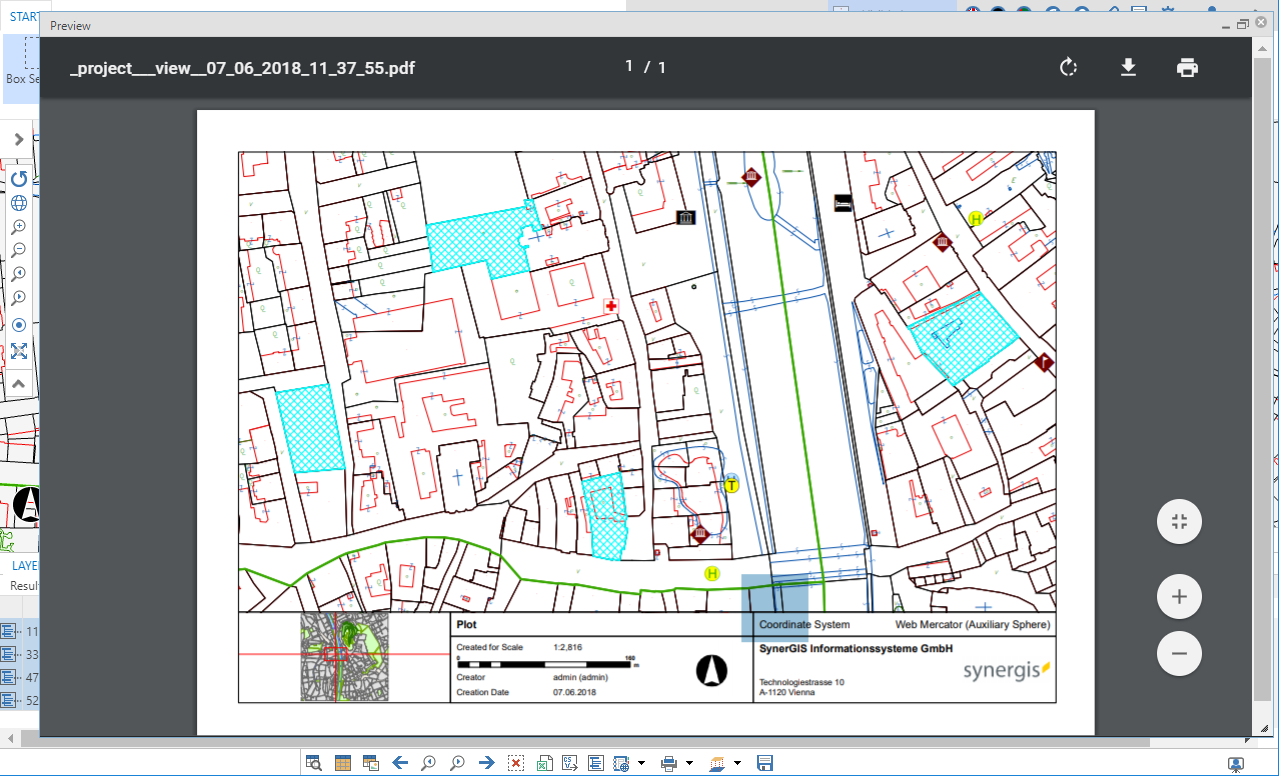

Print of several selected objects

Print of several selected objects

Print selected features (with print series)

To generate a print from selection first select some features. Either click the Print button in the search result toolbar or open the context menu or with a right mouse click on the selected objects and select in the search result list. For this function Print selected objects with &ltName of the print template> is selected from the selection list.

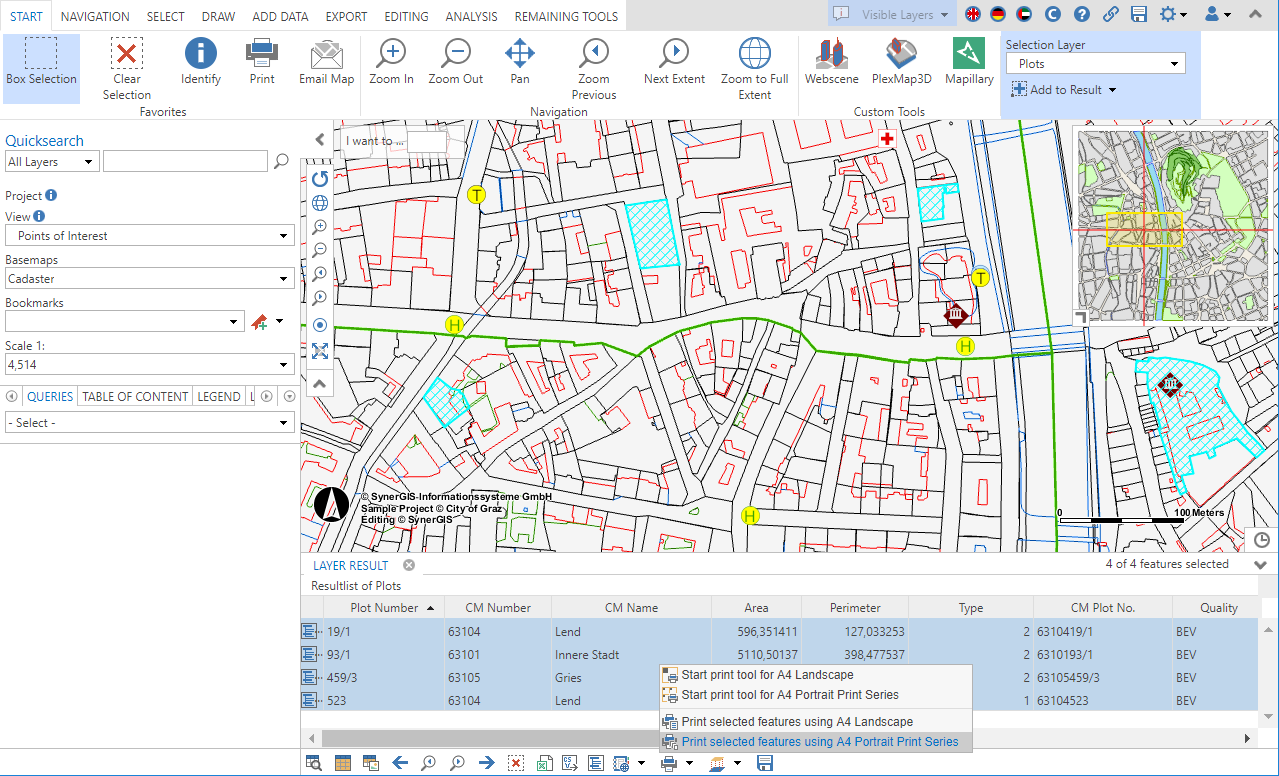

Print a print series based on a selection

Print a print series based on a selection



If an Overview page in the WebOffice 10.9 SP1 project configuration is configured, the first page of the print output shows the position of each selected object on an overview map.

icon_comment

The print scale of the sheets displaying the selected features is defined by the Reference Scale of the WebOffice 10.9 SP1 project.

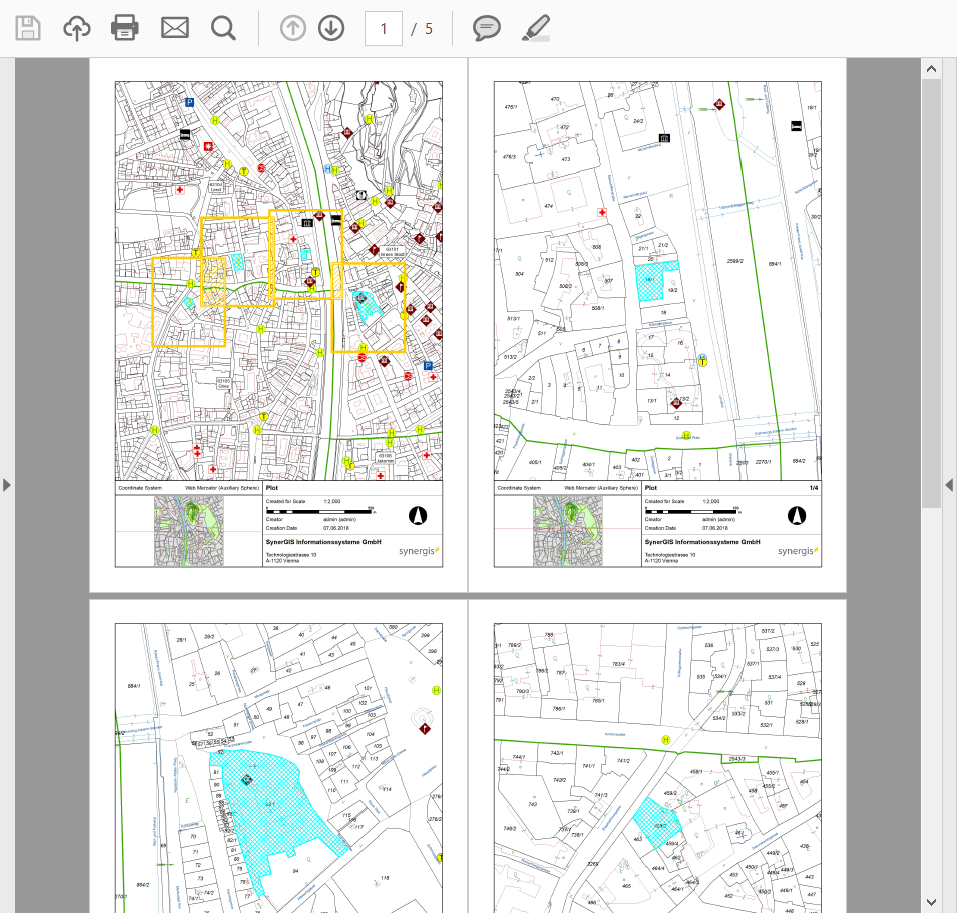

Print with print series of four selected objects

Print with print series of four selected objects



icon_cross-reference

For more information on configuring the Printing (Legacy) tool in WebOffice author standalone can be found in the chapter Printing (Legacy).

For more information on configuring print templates and configuring attribute fields, see the chapter on Templates (file name) and its subchapters.

See chapter Print Templates with Attribute Data for details about the configuration of layer specific print templates.

See chapter Print Series for details about the configuration of the print series element.

More information on the search results bar in the WebOffice core client can be found in the chapter Layer Result Toolbar.
