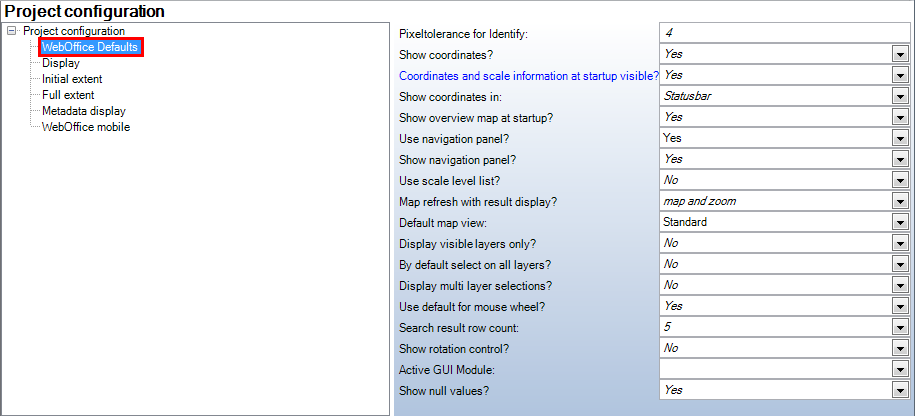

WebOffice Default Settings

Property

Description

Pixel tolerance for Identify

Pixel tolerance when clicking into the map to identify objects. Around the point a buffer is created and used for search (calculated by adding the defined number of pixels on right, left, bottom and top of the click point).

Show coordinates in status bar?

Specifies whether the current coordinates of the mouse pointer (position in geodata units) are shown or not.

Show overview map at startup?

Specifies if Overview map is displayed at start up (Yes) or hidden (No).

Show navigation panel?

Specifies if the navigation panel is displayed at start up (Yes) or hidden (No).

Map refresh with result display?

Specifies the default behavior of the WebOffice client if the search button is pressed in the Search form: Search result page and selection in map get displayed immediately (Yes) or only the Search result page gets displayed immediately (no automatic map refresh is done) (No).

Tip: Behavior can be changed manually by the user.

Default map view

Specifies the Map view to be used for initial map display.

Especially useful if no Table of contents of whole map collection (see Table of Content (TOC of Map Collection) is configured.

By default select on all layers?

Specifies whether to preselect All layers for selection and info tools by default.

'Select all layers' option in WebOffice 10 R3 client

Display multi layer selections

Specifies whether to graphically display multiple layer selections. If Yes a button Display All Features is shown below the Feature Summary window of a spatial selection.

'Display All Features' button below 'Feature Summary' in WebOffice 10 R3 client

Use default for mouse wheel?

Specifies whether to zoom in when moving the mouse wheel towards the map display (Yes) or zoom out (No).

Search result row count

Specifies the height of the Search result window (unit is count of result rows).

Search result row count
