Navigation:  Introduction to WebOffice map widget > WebOffice map widget test container > WebOffice map widget test container Structure > WebOffice map widget Parameters > Map Content

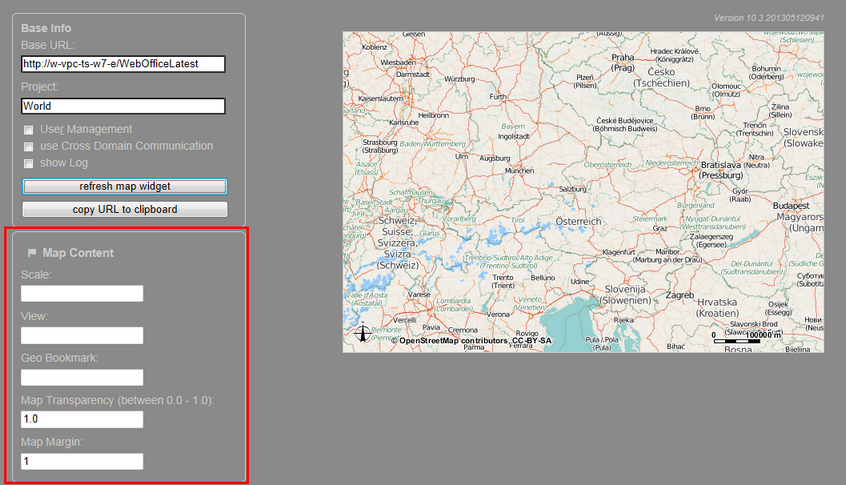

Within this section it's possible to specify the scale and the map view.



Scale: Insert the desired scale of the map content.

View: Specifies the desired map view (use the external ID which is configured in the project configuration)

Geo Bookmark: Enter the ID of the geo bookmark, that defines the spatial extent for calling the project (the external ID has to be configured in the project).

Map Transparency: Specifies if the last visible map image is displayed with a specific transparent level when it is getting updated (Default: 1.0, which means transparent. Incorrect spelling will set the value to 1.0, eg. '0' instead of '0.0' OR '0,5' instead of '0.5')

Map Margin: Defines the number of tiles to get preloaded in the area outside the currently visible map (default is 1.0, note that a change of the value is only useful when using cached services).
