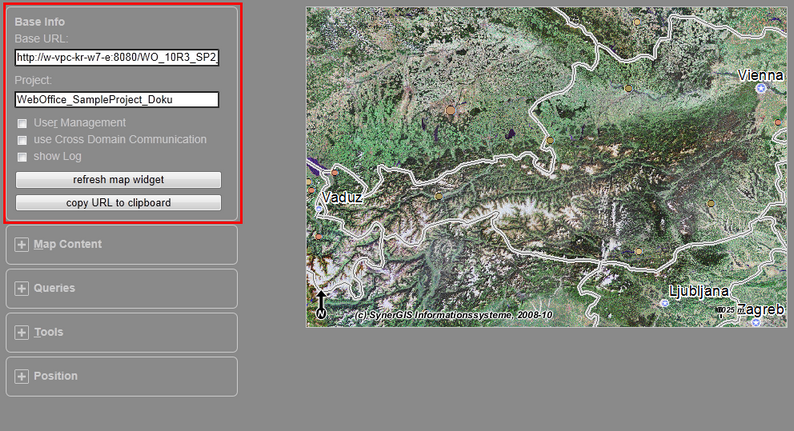

Within this section it's possible to specify the connection to the used WebOffice project.



Base URL: Specify the WebOffice application (e.g. http://<server>:<port>/<WebOffice-Applikation>). Automatically this field will be filled with the Base URL where the testcontainer is launched. Of course this Base URL can be adjusted anytime. Note, when checking the option 'use Cross Domain Communication' the content of this field will be deleted.



Project: Specify the project name (Name of the project configuration -XML)



When using WebOffice usermanagement, it is possible to enter user and password. Please consider also notes of chapter Administration Parameters when using WebOffice usermanagement.



When using the option use Cross Domain Communication the parameter useXD=true is set and Cross Domain Scripting will be activated. For further information on how to use Cross Domain Scripting see chapter Cross Domain Scripting.

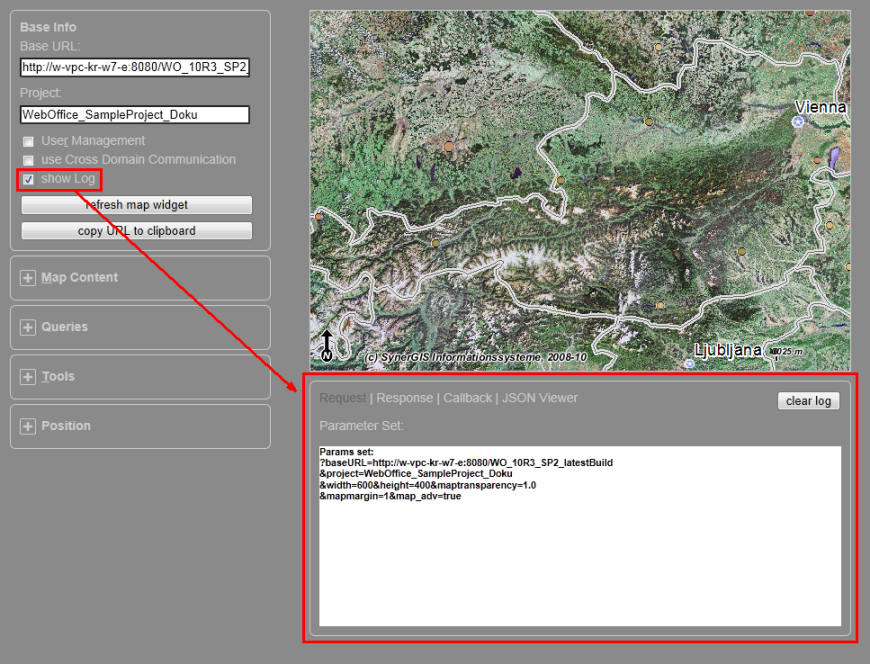

The option show Log opens a separate section below the map content containing information on following topics:

•Request: displays all parameters necessary for the WebOffice map widget request

•Response: displays the response of the synservice give back from the WebOffice map widget request

•Callback: displays the values of the callback functions (e.g. results of an identify action)

•JSON Viewer: displays a formatted JSON-view of the synservice response

The current information will be displayed at the top of the list. When clicking the Button "clear log" all entries of all tabs will be deleted.
