Style Configuration – controlling Symbology of uploaded Layers |

|
Style Configuration – controlling Symbology of uploaded Layers |
|
Using the Style configuration of tool Upload local geodata, it is possible to specify the layer symbology of the uploaded geodata.

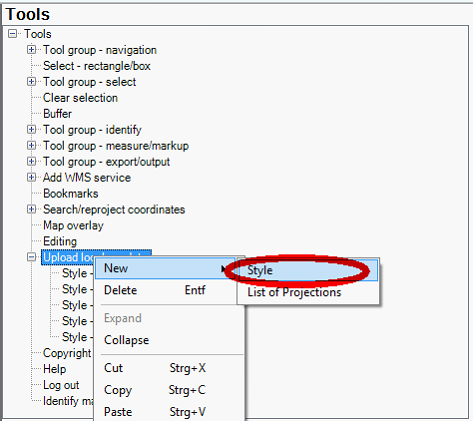

Style configuration of ‘Upload local geodata’ tool

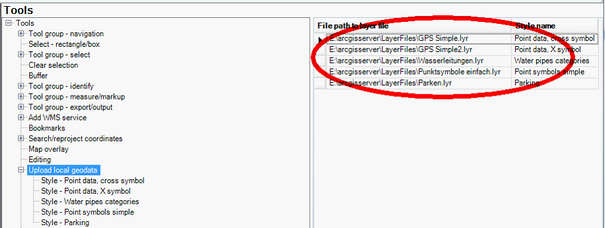

List of configured Styles
A Style is made up of a reference to an Esri layer file (.lyr) and a name. Depending on the renderer used in the saved layer file, the layer file may be
•specific to the geometry type of the layer only (e.g. a simple symbol) or
•specific to the underlying feature class (e.g. if using labeling or unique values renderer etc.)
Note: WebOffice 10 R3 does not support any customer rendering in layer files.
Property |
Description |
File path to layer file |

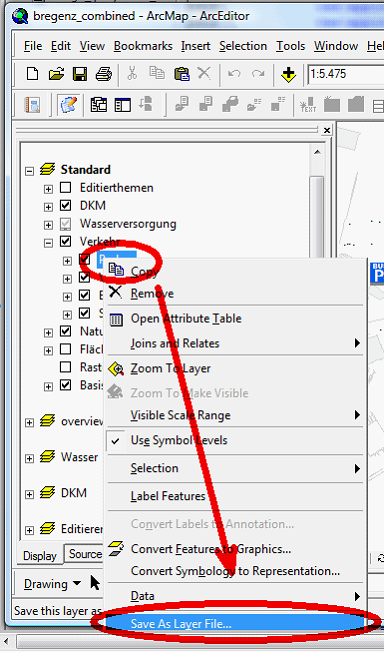

File path to Esri layer file. It is recommended to specify the symbology you want to get displayed by using ArcMap functionality. You can then store the layer symbology by saving an Esri layer file which implements the specific symbology.  'Save As Layer File' function in ArcMap
|
Style name |

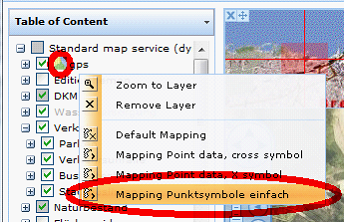

Style name displayed in WebOffice 10 R3 client.  Symbol showing available Styles and Styles menu of Layer in Table of Content
|
Style configuration
