How to... > How to configure… > Integration of WebOffice and QueryCenter Projects > QueryCenter project (source project): Integration (Call FROM WebOffice)

See Integration of external Applications, for details.

See WebOffice URL call Interface for details on supported HTTP call parameters of WebOffice 10 R3.

Note: Assure to use the same calling convention (Base URL) like displayed in the Figure below.

The Base URL is configured to

externalcall.jsp?project=bregenz_combined_views&query=grundstuecke&keyname=KG_GNR

This Base URL will only work if in the target project (bregenz_combined_views) a Query with the External Layer ID ‘grundstuecke’ and a Search field ‘KG_GNR’ are configured.

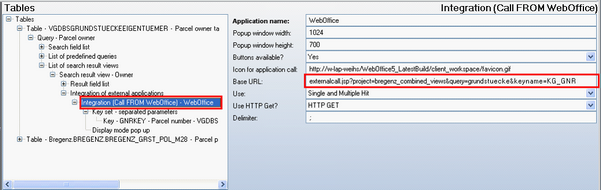

Integration (Call from WebOffice) - passing parameters to another WebOffice 10 R3 project

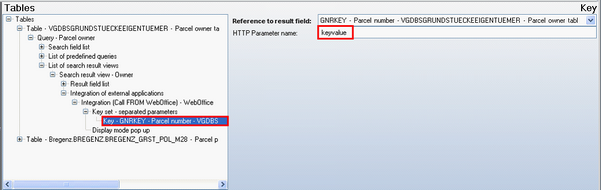

Key configuration - passing parameters to another WebOffice 10 R3 project

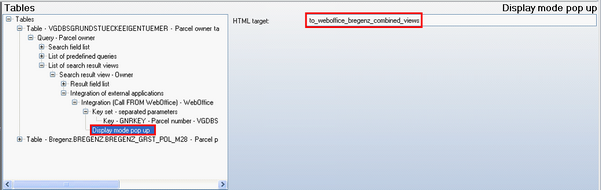

Display mode pop up – HTML target configuration

Note: Assure to use the correct HTML target configuration value. In the Figure above the parameterized call from the QueryCenter project will be passed over to a project identified by the Project ID bregenz_combined_views. Therefore the HTML target will be to_weboffice_bregenz_combined_views.
