WebOffice Standard Reference > WebOffice Category > Project Configuration

The element Measure Units allows the user to measure length and area units for the project. These units are internationally adapted and serve primarily to measure in different units of measurement.

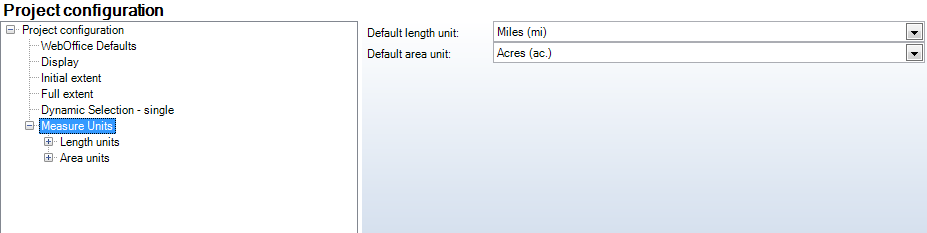

WebOffice 10 R3 Project Conficuration - Units of Measurement

Properties	Beschreibung
Unit of length	Unit of length is defined in WebOffice 10 R3 Client as standard
Unit of area	Unit of area is defined in WebOffice 10 R3 Client as standard

Measurement Units - Categorie WebOffice

Note: If the default value fields are left blank, those units are applied in either field/list (i.e. unit of length/unit of area), which were initially defined and configured as standard values.

The settings for the units of measurement can be changed in either way. Once, in the WebOffice html Client Status bar "Settings" dialog, or in the tool form "Add Redlining".

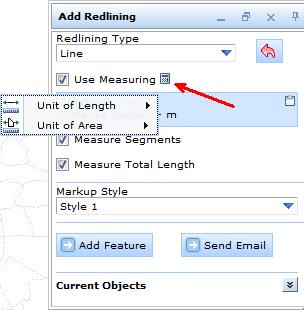

Change units of measurement in the tool form 'Add Redlining'
