Navigation:  WebOffice Standard Reference > Maps Category > Map Views > Hiding Maps from the Table of Content

If in a specific map view one of the Map services of the Map collection is not configured at all then the Map service does NOT get displayed in the Table of Content control of the WebOffice 10 R3 Client. This way it is easy to hide information / complexity in the Table of Content from the user. The user will be able to fully focus its attention to the remaining Map services displayed in the Table of Content control.

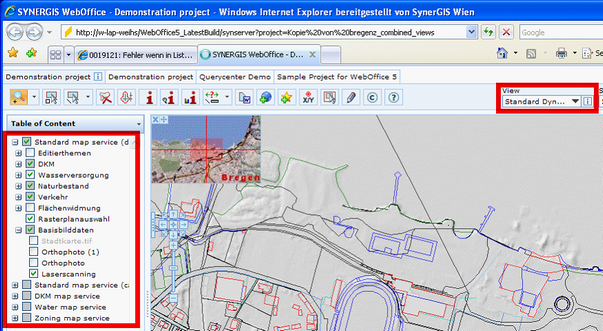

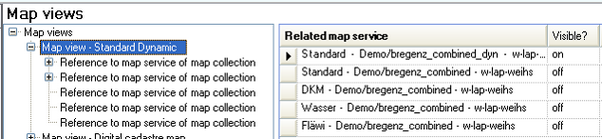

In the figure below you see the configuration of a Map view named ‘Standard Dynamic’ with 5 Reference to map service of map collection entries. In the WebOffice 10 R3 client Table of content all 5 Map service entries get displayed.

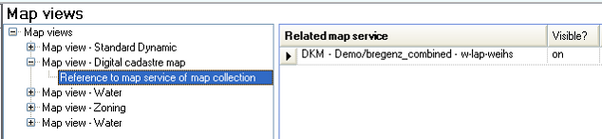

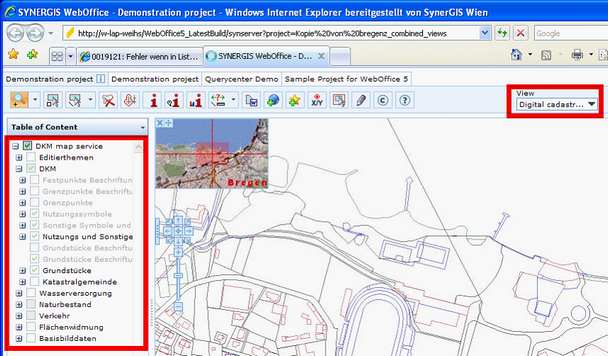

Whereas in the figure below you see the configuration of a Map view named ‘Digital cadastre map’ with only 1 Reference to map service of map collection entry. In the WebOffice 10 R3 Client Table of Content only 1 Map service entry gets displayed. In the WebOffice 10 R3 Client map, only the Digital cadastre service is shown.
