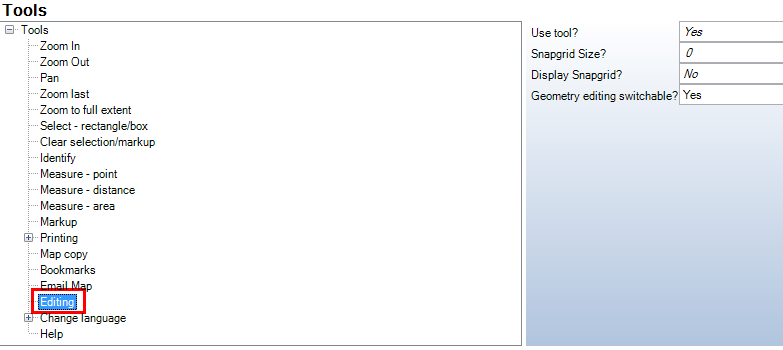

Editing Tool configuration - WebOffice category
Property |
Description |
Use tool? |
Specify whether this Tool is available in the WebOffice client (Yes) or not (No). |
Snapgrid Size? |
If a Snapgrid size is configured, vertices are always snapped to this Snap grid. A snap grid is independent of the edit layer and edit action. If a snap grid is configured, all other snap profile definitions on edit layers are overruled. A configuration of 0 (default value) means no snap grid. |
Display Snapgrid? |
Defines if the snap points are rendered by the WebOffice client (Yes), or the map service takes care of drawing the snap points (No). |
Geometry editing switchable? |
Defines if the user can switch editing of geometries (Yes), or if the geometry editing functionality (map interaction) is always on (No / Default value). |
Upload local geodata
Editing tool in WebOffice html client

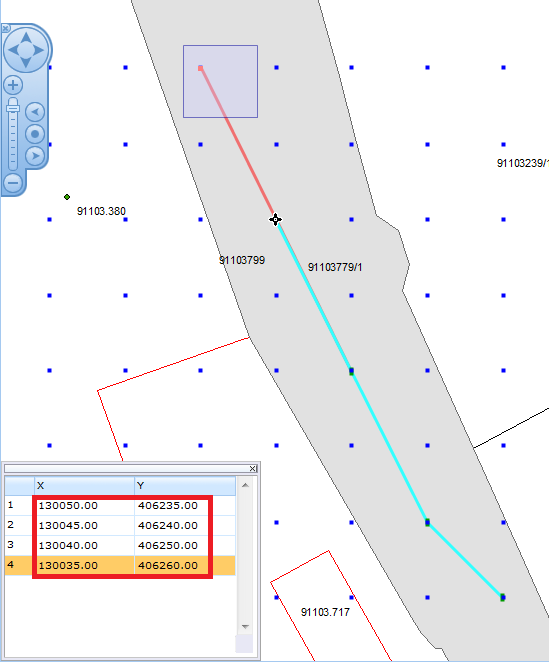

Editing with Snapgrid
Using the Snap grid vertices can only be set to grid points with specified distances e.g 5 meters (see figure above).
See chapter Edit Layers for layer specific editing configuration.

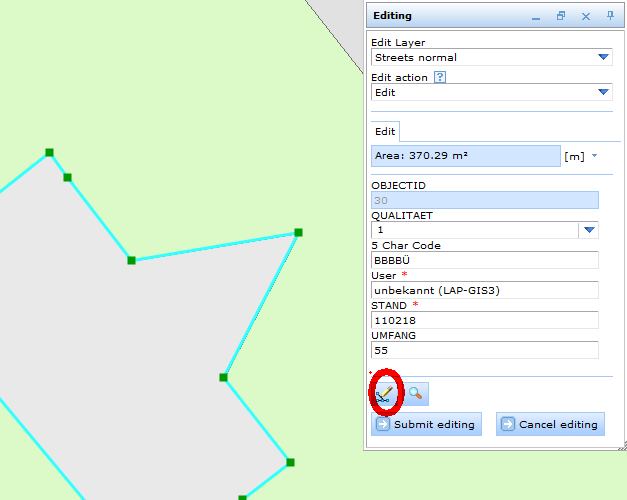

Enable geometry editing button in WebOffice 10 R3 HTML Client
If configured, geometry editing is only enabled when button "enable geometry editing" is enabled.
